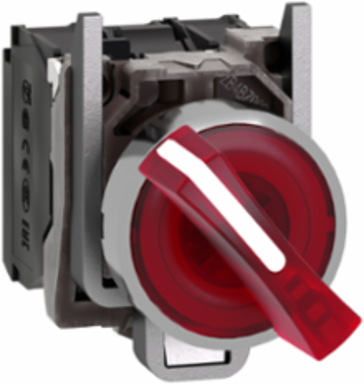

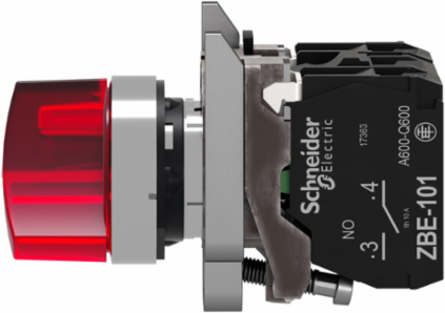

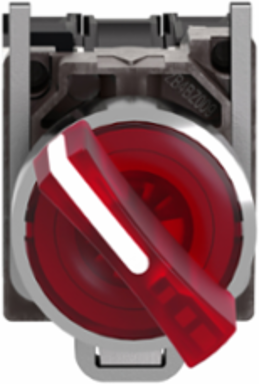

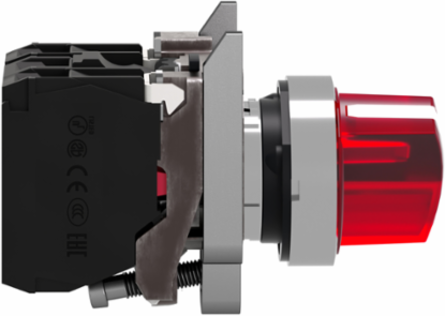

Schneider Electric XB4BK124G5 Harmony XB4 Illuminated Selector Switch, 22mm, 2 Positions, IP66/IP67/IP69K
- MPN: XB4BK124G5
- PPN: SCH-XB4BK124G5
CAD
$153.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4 illuminated modular red selector switch has 2 positions, operates with a stay-put mechanism, a 120V AC universal LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Depth68 mm
Physical Attributes
- Cap Operator Or Lens Color
- red
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 0
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Cap Operator Or Lens Color
- red
- Certificate Agency
- BV, UL, CSA, DNV, LROS (Lloyds register of shipping)
- [Us] Rated Supply Voltage
- 110...120 V, 110...120 V AC 50/60 Hz
- Terminals Description Iso N°1
- (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1063603841, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.6 kg CO2 eq., 0.608450386
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- chromium plated metal
- Compatibility Code
- XB4
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard contacts
- Device Short Name
- XB4
- Electromagnetic Emission
- class B IEC 55011
- Head Type
- standard
- Light Source
- universal LED
- Mounting Diameter
- 22.5 mm
- Operator Position Information
- 2 positions 90°
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- illuminated selector switch
- Protective Treatment
- TH
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Supply Voltage Limits
- 100-132 V AC
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- stay put
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This illuminated modular selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. It has a metal bezel.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.436 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1,UL 508.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Width Nominal
- 30 mm
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- red
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Pos Information2 positions 90°
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Carbon Footprint Of The Distribution Phase [A4]0.0104613067, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0132231218
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]48 kg CO2 eq., 47.7738449363
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308007EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Bulb Baseintegral LED
Contact Operationslow-break

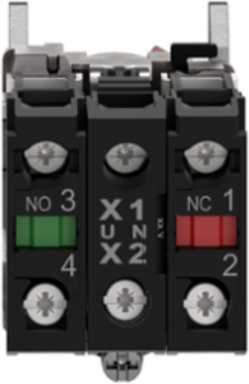

Contacts Type And Composition1 NO + 1 NC
Current Consumption14 mA
Electrical Shock Protection Classclass I conforming to IEC 60536
Fixing Collar Materialzamak
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Mechanical Durability1000000 cycles
Operating Torque0.14 N.m NO changing electrical state
Operator Profilered standard handle
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB4
Resistance To Fast Transients2 kV IEC 61000-4-4
ReturnabilityYes
Service Life100000 h at rated voltage and 25 °C
Signalling Typesteady
Supply Voltage110...120 V
Sustainable PackagingNo
Total Lifecycle Carbon Footprint49 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2308007EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Height Nominal47 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)80.000 g
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 48.5123401349
- Environmental Disclosure
- ENVPEP2308007EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308007EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated selector switch
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
