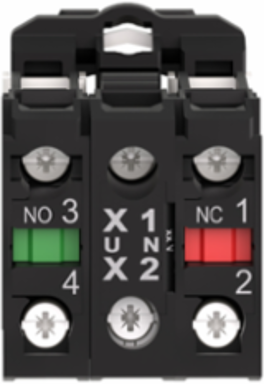

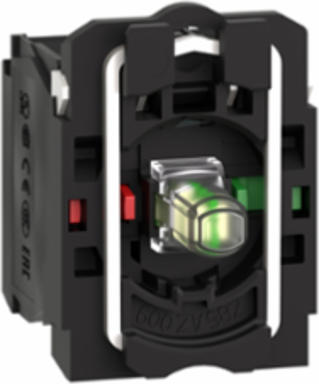

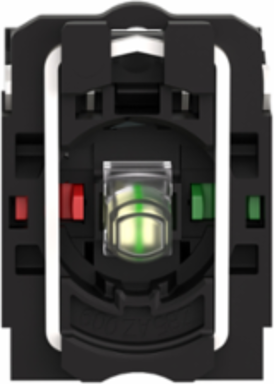

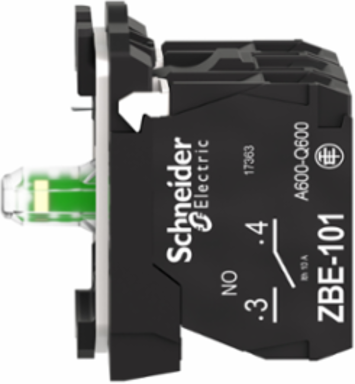

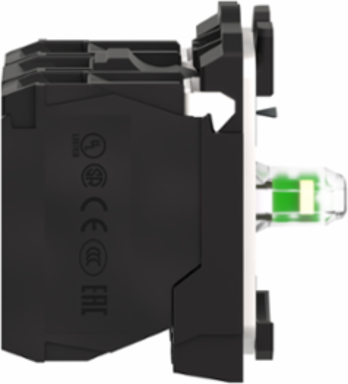

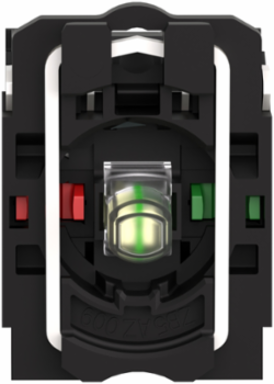

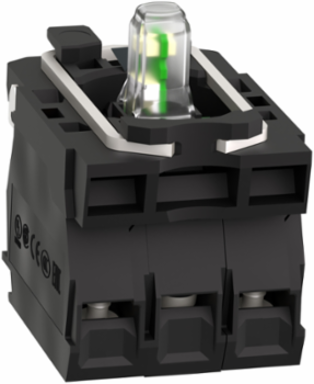

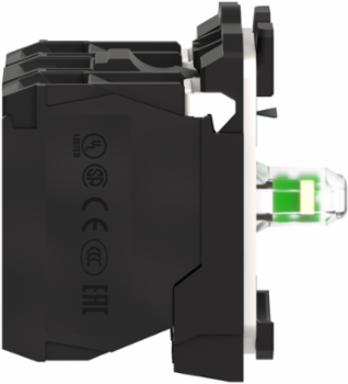

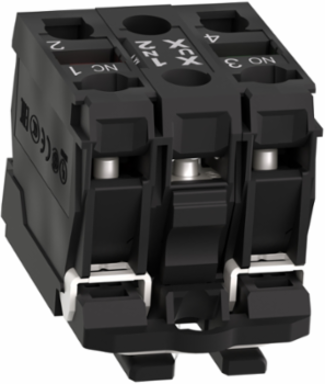

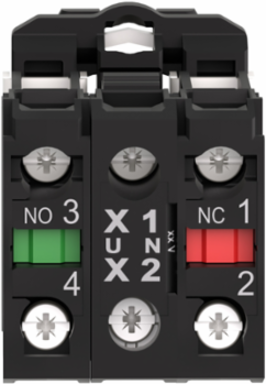

Schneider Electric ZB5AW0B15 Harmony XB5 Light Block Assembly, 1NO + 1NC, 24V AC/DC, IP20

  • MPN: ZB5AW0B15
  • PPN: SCH-ZB5AW0B15
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $92.94

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XB5, light block with body/fixing collar operates with a universal LED. It has 1 x NO + 1 x NC contacts and a plastic body and is compatible with Harmony XB5 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, United States

    Physical Attributes

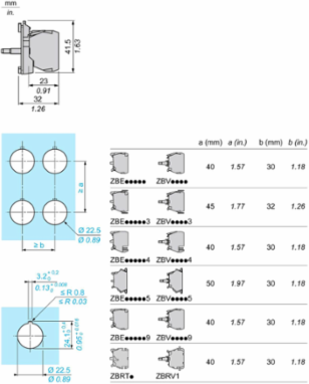

    Cad Overall Depth32 mm
    Cad Overall Width30 mm
    Cad Overall Height42 mm
    Light Source Colorwhite

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Customizable0, no
    Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Certificate AgencyCSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
    [Us] Rated Supply Voltage24 V, 24 V AC/DC 50/60 Hz
    Carbon Footprint Of The Distribution Phase [A4]0.009224099821746882, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0088698752228164, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]7 kg CO2 eq., 7.320915492957744
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2404014EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Percentage Of Recycled Metal Content29 %
    Bulb Baseintegral LED
    Contact Operationslow-break
    Contacts Type And Composition1 NO + 1 NC
    Current Consumption18 mA
    Electrical Shock Protection Classclass II conforming to IEC 60536
    Fixing Collar Materialplastic
    Light Block Supplydirect
    Operating Force2 N NC changing electrical state2.3 N NO changing electrical state
    Operating Travel1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTH
    Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
    Resistance To Fast Transients2 kV IEC 61000-4-4
    Sale Per Indivisible Quantity1
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Software Versionv5.9.4
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint8 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Supply Voltage 20 Supply Voltage24 V
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 &amp; UL 508.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %38
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536509035
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Light Sourceuniversal LED, universal LED
    Contacts Composition1 NO + 1 NC
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Terminals Description Iso N°1(13-14)NO, (11-12)NC, (13-14)NO, (11-12)NC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.07397076648841354
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.22305882352941178
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content16 %
    Compatibility CodeZB5
    Contacts Materialsilver alloy (Ag/Ni)
    Contacts Usagestandard
    Device Short NameZB5
    Electromagnetic Emissionclass B IEC 55011
    Head Typestandard
    Mechanical Durability5000000 cycles
    Operating Torque0.05 N.m NO changing electrical state
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Or Component Typecomplete body/contact assembly and light block
    Range Of ProductHarmony XB5
    Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-68 kV in free air (in insulating parts) IEC 61000-2-6
    ReturnabilityYes
    Service Life100000 h at rated voltage and 25 °C
    Signalling Typesteady
    Supply Voltage Limits19.2-30 V DC21.6-26.4 V AC
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Light Source Colorwhite
    Pep CodeENVPEP2404014EN
    Pep Verification Date2024-06-09
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
    [Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)38.0 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint7.636039058020133
    Environmental DisclosureENVPEP2404014EN
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2024-06-09
    Psr VersionPSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level29 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2404014EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2404014EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typecomplete body/contact assembly and light block
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8EC000204
    ETIM 9EC000204

    Surge Protection And Filtering Attributes

    Surge Withstand1 kV IEC 61000-4-5

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationbasic sub-assemblies
