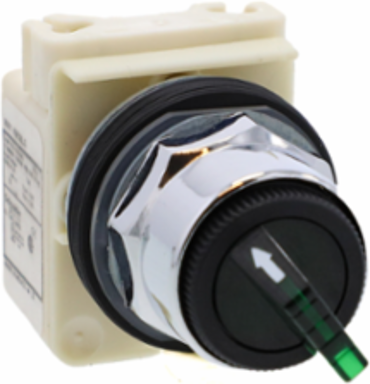

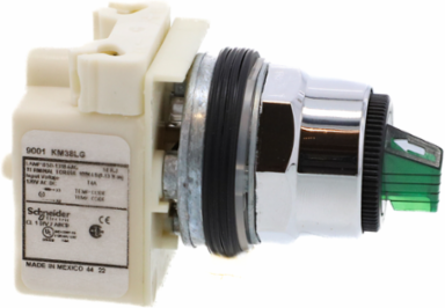

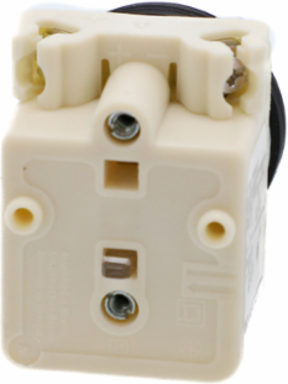

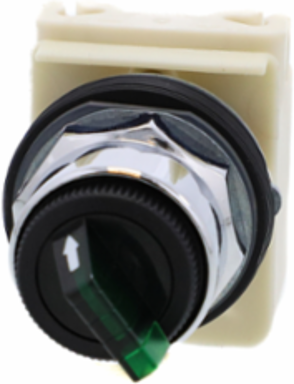

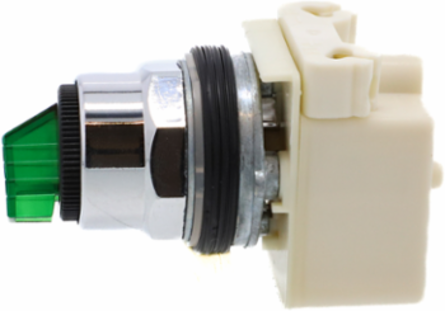

Square D 9001K11J38LGG Harmony 9001K Illuminated Selector Switch, 30mm, Green LED, 120V
- MPN: 9001K11J38LGG
- UPC: 785901678526
- PPN: SCH-9001K11J38LGG
CAD
$256.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This illuminated selector switch from Schneider Electric is designed for automation and control applications where reliable functionality is essential. Featuring a striking green LED, the 30mm switch enhances visibility and provides clear operational feedback in various environments. Operating at 120V, it is engineered to deliver consistent performance, making it an ideal choice for those looking to incorporate efficient pilot devices into their systems. The Harmony 9001K series epitomizes quality and durability, ensuring that your control interface remains both effective and user-friendly.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 120 V AC/DC
- Vibration Resistance
- 7 gn (2-500 Hz) IEC 60068-2-6
- Operator Type
- maintained, stay put
- Operator Positions
- 2 positions
- Size
- 30 mm
- Cam Profile
- 5
- Light Block Supply
- direct
- Light Source Colour
- green
- Bezel Material
- metal
- Electrical Shock Protection Class
- Class II IEC 61140
- NEMA Degree of Protection
- NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13
- Product Certifications
- NEMA, UL 508
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
Shock Resistance50 gn IEC 60068-2-27
Mechanical Durability500000 cycles
Operator Profilegreen standard knob, standard handle
Mounting Diameter30 mm (1.18 in)
Shape of Signaling Unit Headround
Light SourceLED
Light Block Colourgreen
Bulb BaseBA 9s
Protective TreatmentTC
IP Degree of ProtectionIP66 IEC 60529
StandardsUL 508, JIS C 852, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, JIS C 4520, IEC 60947-1
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Country of OriginMexico
RoHS CompliancePro-active compliance (out of EU RoHS legal scope)
