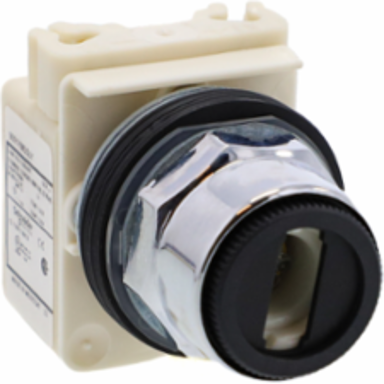

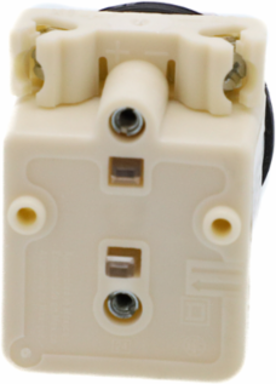

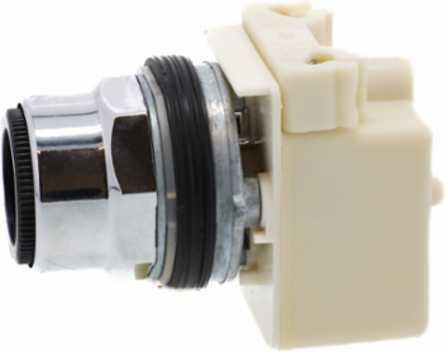

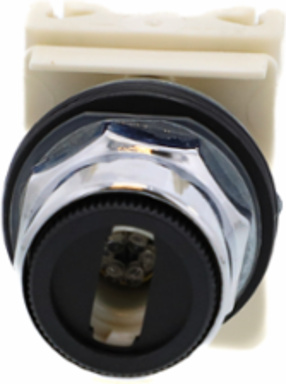

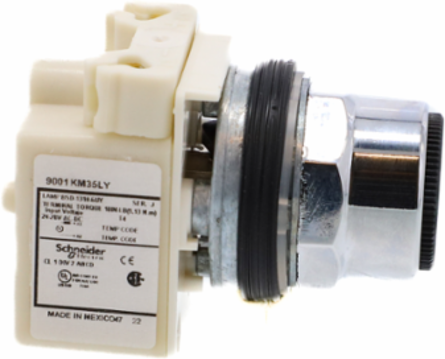

Square D 9001K11J35LY Harmony 9001K Illuminated Selector Switch Head 30 mm Yellow LED 24-28V
- MPN: 9001K11J35LY
- UPC: 785901804369
- PPN: SCH-9001K11J35LY
CAD
$242.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This illuminated selector switch head, designed by Schneider Electric, is an essential component for automation and control applications. The Harmony 9001K series features a striking yellow LED that operates within a 24-28V range, providing clear visibility in various industrial environments. The 30 mm design not only ensures compatibility with a range of pilot devices but also enhances operational efficiency by allowing users to make quick selections in their control systems. This selector switch head combines functionality with reliability, making it a valuable addition to any control panel.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 24...28 V AC/DC
- Vibration Resistance
- 7 gn (2-500 Hz) IEC 60068-2-6
- Size
- 30 mm (1.18 in)
- Operator Profile
- yellow standard knob, without handle
- Operator Position Information
- 2 positions
- Light Source
- LED
- Bezel Material
- metal
- Contacts Type and Composition
- without contact block
- Electrical Shock Protection Class
- Class II IEC 61140
- NEMA Degree of Protection
- NEMA 1, 2, 3, 3R, 4, 6, 12, 13
- Product Certifications
- UL 508, NEMA
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- RoHS Compliance
- Pro-active compliance
Mechanical Durability500000 cycles
Shock Resistance50 gn IEC 60068-2-27
Mounting Diameter30 mm (1.18 in)
Type of Operatormaintained, stay put
Bulb BaseBA 9s
Light Source Coloryellow
Shape of Signaling Unit Headround
Protective TreatmentTC
IP Degree of ProtectionIP66 IEC 60529
StandardsUL 508, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-4, JIS C 852, JIS C 4520
Ambient Air Temperature for Storage-40 to 70 °C (-40 to 158 °F)
Mercury FreeYes
Country of OriginMX
