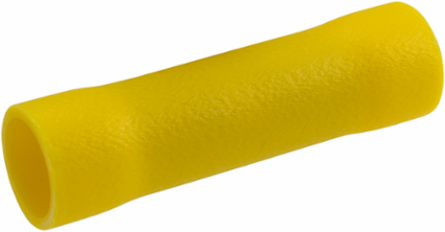

ILSCO VBST-10-P25 ILSCON Butt Splice, Conductor Range 10-12, Vinyl Insulated, Butted Barrel, Yellow Color Code, Pack of 25
- MPN: VBST-10-P25
- UPC: 783669213621
- PPN: ILC-VBST-10-P25
CAD
$12.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ILSCON Butt Splice, Conductor Range 10-12, Vinyl Insulated, Butted Barrel, Yellow Color Code, Pack of 25
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.88 in
- Weight
- 0.2103 lbs
Length3.5 in
Width1.21 in
Voltage
- Voltage Rating
- 600 V
Dimensions
- Height BX (IN)
- 7.75
- Weight BX (LB)
- 12.6155
Maximum Wire Insulation Diameter (IN)0.252
Width BX (IN)9.5
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL/cUL 486A/B Listed
UL Control Number20U0
UL File NumberE6207
Additional Class Attributes
- Conductor Entry
- Funnel wire
- Construction Type
- Butted
- Installation Tooling
- ILST-22K
- Insulation Flared End
- Yes
ConnectionCompression
ILSCOs Die Index NumberA
Installing DiesDie Set A
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
- Fully Insulated
- Yes
- Material
- Copper
Connector FinishTin
InsulationVinyl
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 12 Sol
Conductor Range CU Stranded (Primary, run, main, line)10 Str - 12 Str
General
- Bag Quantity
- 25
- Dual Rated
- No
- UPC Code
- 78366921362
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-3
Color
- Color
- Silver, Yellow
Environment and Temperature
- Halogen Free
- No
Temperature Rating75°C
