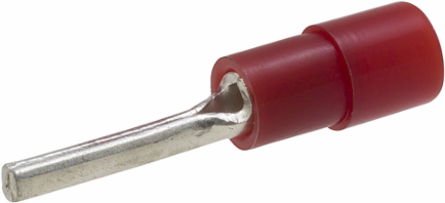

Ilsco NPBR-18-512-P50 ILSCON Pin Terminal, Conductor Range 18-22, Nylon Insulated, Red Color Code, Pack of 50
Ilsco NPBR-18-512-P50 ILSCON Pin Terminal, Conductor Range 18-22, Nylon Insulated, Red Color Code, Pack of 50
- MPN: NPBR-18-512-P50
- UPC: 0783669207842
- PPN: ILC-NPBR-18-512-P50
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$32.37/ EA
Specifications
Voltage
- Voltage Rating
- 600 V
Dimensions
- Height BX (IN)
- 7.75
- Weight BX (LB)
- 10.9487
Maximum Wire Insulation Diameter (IN)0.157
Width BX (IN)9.5
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL/cUL 486A/B Listed
UL Control Number20U0
UL File NumberE6207
Additional Class Attributes
- Conductor Entry
- Funnel wire
- Construction Type
- Brazed
- Installation Tooling
- ILST-22K
- Insulation Flared End
- Yes
- Number of Conductors
- 1
ConnectionCompression
ILSCOs Die Index NumberA
Installing DiesDie Set A
Insulation GripYes
Tongue TypePin
Material and Finish
- Conductor Material
- Copper
- Fully Insulated
- No
- Material
- Copper
Connector FinishTin
InsulationNylon
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 18 Sol - 22 Sol
Conductor Range CU Stranded (Primary, run, main, line)18 Str - 22 Str
General
- Bag Quantity
- 50
- Dual Rated
- No
- UPC Code
- 78366920784
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-3
Specifications
- Height
- 2.88 in
- Weight
- 0.1825 lbs
Length3.5 in
Width1.21 in
Color
- Color
- Silver, Red
Environment and Temperature
- Halogen Free
- Yes
Temperature Rating105°C
Downloads
