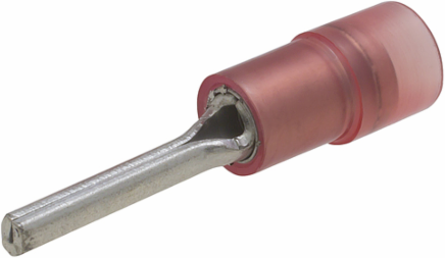

ILSCON Pin Terminal, Conductor Range 18-22, Double Crimp, Nylon Insulated, Red Color Code, Pack of 50
ILSCO

ILSCO NPBRD-18-512-P50 ILSCON Pin Terminal, Conductor Range 18-22, Double Crimp, Nylon Insulated, Red Color Code, Pack of 50

  • MPN: NPBRD-18-512-P50
  • UPC: 783669208054
  • PPN: ILC-NPBRD-18-512-P50

CAD

$39.67

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

ILSCON Pin Terminal, Conductor Range 18-22, Double Crimp, Nylon Insulated, Red Color Code, Pack of 50

Documentation & Downloads

Specifications

Key Specifications

Height
2.88 in
Weight
0.1946 lbs
Length3.5 in
Width1.21 in

Voltage

Voltage Rating
600 V

Dimensions

Height BX (IN)
7.75
Weight BX (LB)
11.6763
Maximum Wire Insulation Diameter (IN)0.157
Width BX (IN)9.5

Testing Standards

Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS Specification
UL/cUL 486A/B Listed
UL Control Number20U0
UL File NumberE6207

Additional Class Attributes

Conductor Entry
Funnel wire
Construction Type
Brazed
Installation Tooling
ILST-22K
Insulation Flared End
Yes
Number of Conductors
1
ConnectionCompression
ILSCOs Die Index NumberB
Installing DiesDie Set B
Insulation GripYes
Tongue TypePin

Material and Finish

Conductor Material
Copper
Fully Insulated
No
Material
Copper
Connector FinishTin
InsulationNylon

Conductor Ranges

Conductor Range CU Solid (Primary, run, main, line)
18 Sol - 22 Sol
Conductor Range CU Stranded (Primary, run, main, line)18 Str - 22 Str

General

Bag Quantity
50
Dual Rated
No
UPC Code
78366920805
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-3

Color

Color
Silver, Red

Environment and Temperature

Halogen Free
Yes
Temperature Rating105°C
