ILSCO

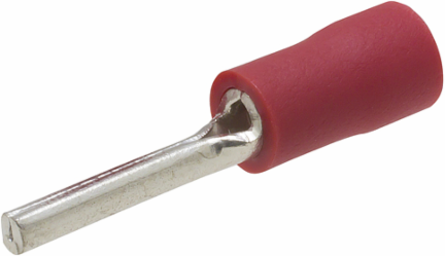

ILSCO VPBR-18-512-P50 ILSCON Pin Terminal, Conductor Range 18-22, Vinyl Insulated, Red Color Code, Pack of 50

  • MPN: VPBR-18-512-P50
  • UPC: 783669215120
  • PPN: ILC-VPBR-18-512-P50

CAD

$32.79

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

ILSCON Pin Terminal, Conductor Range 18-22, Vinyl Insulated, Red Color Code, Pack of 50

Documentation & Downloads

Specifications

Key Specifications

Height2.88 in
Weight0.1798 lbs
Length3.5 in
Width1.21 in

Voltage

Voltage Rating600 V

Dimensions

Height BX (IN)7.75
Weight BX (LB)10.79
Maximum Wire Insulation Diameter (IN)0.157
Width BX (IN)9.5

Testing Standards

Prop65 ComplianceWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS SpecificationUL/cUL 486A/B Listed
UL Control Number20U0
UL File NumberE6207

Additional Class Attributes

Conductor EntryFunnel wire
Construction TypeBrazed
Installation ToolingILST-22K
Insulation Flared EndYes
Number of Conductors1
ConnectionCompression
ILSCOs Die Index NumberA
Installing DiesDie Set A
Insulation GripYes
Tongue TypePin

Material and Finish

Conductor MaterialCopper
Fully InsulatedNo
MaterialCopper
Connector FinishTin
InsulationVinyl

Conductor Ranges

Conductor Range CU Solid (Primary, run, main, line)18 Sol - 22 Sol
Conductor Range CU Stranded (Primary, run, main, line)18 Str - 22 Str

General

Bag Quantity50
Dual RatedNo
UPC Code78366921512
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-3

Color

ColorSilver, Red

Environment and Temperature

Halogen FreeNo
Temperature Rating105°C
ILSCON Pin Terminal, Conductor Range 18-22, Vinyl Insulated, Red Color Code, Pack of 50
