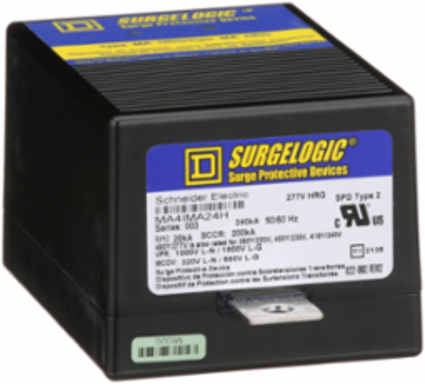

Square D MA4IMA24H Surge mod IMA - HRG - 240kA - 480Y/277VAC - 3P4W - T2 - CSA
Square D MA4IMA24H Surge mod IMA - HRG - 240kA - 480Y/277VAC - 3P4W - T2 - CSA
- MPN: MA4IMA24H
- UPC: 785901933434
- PPN: SCH-MA4IMA24H
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1787.42/ EA
Description
Surgelogic™ EMA replacement modules surge protective devices are apart of modular brick parallel device. The EBA device has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs). These systems provide suppression, enchanced EFI/RFI filtering for all critical modes inside electrical equipment, and shorter lead lengths with superior SPD performance. This surge protection device is 3 phase, 3-wire + ground, 480Y/277 V, 240 kA surge current per phase, and short circuit current rating of 200 kA. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. The device is engineered to UL 489 11th Edition, type 2 SPD and complies with UL 96A 12th Edition Master Label for Lightning Protection Systems.
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2002011EN
Environmental DisclosureENVPEP2002011EN
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Ambient Air Temperature For Operation
- 65-65 °C
- Enclosure Material
- black plastic
Nema Degree Of ProtectionNEMA 2
StandardsUL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
Complementary
- Height
- 158.8 mm
- Connections - Terminals
- terminals
- Mounting Support
- panel mounting
- [Uc] Maximum Continuous Operating Voltage
- 320 V
- Width
- 82.8 mm
- Depth
- 68.3 mm
- Network Number Of Phases
- 3 phases
Local Signallingstatus LED green normal operation
Short-Circuit Protection200 kA
Provided Equipmentalarm enable/disable switch
Surge Current240 kA per phase
Wiring Configuration4-wire
Nominal Discharge Current20 kA
[Ue] Rated Operational Voltage480Y/277 V AC
Specifications
- Range Of Product
- Surgelogic
- Product Or Component Type
- surge protection module
Accessory / Separate Part Categoryreplacement part
Device Short NameIMA || HRG
