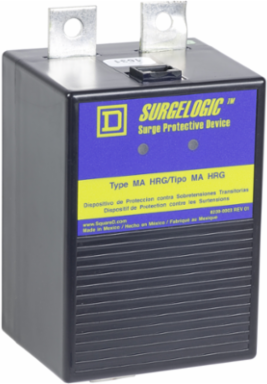

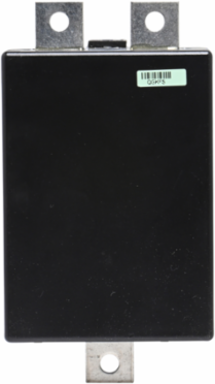

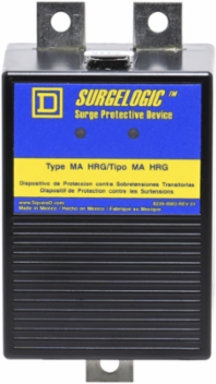

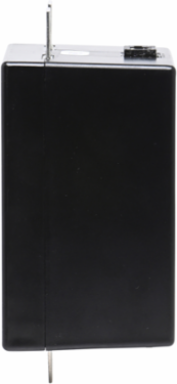

Square D MA8IMA16H Surge Protection Module 160 kA 600Y/347V AC 3-Phase NEMA 2
- MPN: MA8IMA16H
- UPC: 785901831778
- PPN: SCH-MA8IMA16H
CAD
$1238.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Surge Protection Module from Schneider Electric is engineered to provide robust protection against voltage surges in demanding three-phase electrical systems. With an impressive capacity of 160 kA, this module effectively safeguards your electrical infrastructure against transient overvoltages while operating at a voltage level of 600Y/347V AC. Designed for compatibility within NEMA 2 enclosures, it is a reliable choice for enhancing the longevity and reliability of your data and communication systems, making it essential for any facility concerned with maintaining continuous performance and safety in their power distribution devices.
Documentation & Downloads
Specifications
Additional
- Nominal Discharge Current
- 20 kA
- Short-Circuit Protection (SCCR)
- 200 kA
- Maximum Continuous Operating Voltage (MCOV)
- 420 V
- Wiring Configuration
- 3-wire
- Local Signalling
- status LED green normal operation
- Height
- 158.8 mm (6.25 in)
- Depth
- 68.3 mm (2.69 in)
- Enclosure Rating
- NEMA 2
- Compliance
- UL 1449 ed. 4, UL 1283 ed. 5, CSA C22.2 No 8:1986, ANSI/IEEE C62.41, ANSI/IEEE C62.45
Surge Current160 kA per phase
Rated Operational Voltage600Y/347 V AC
Number of Phases3 phases
Connectionterminals
Mounting Supportpanel mounting
Width82.8 mm (3.26 in)
Ambient Operating Temperature65 °C (149 °F)
Enclosure Materialblack plastic
Country of OriginMexico
