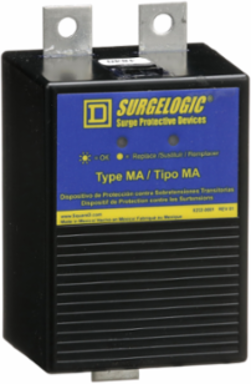

Square D MA8IMA24 Surge mod IMA - 240kA - 600Y/347VAC - 3P4W - T2 - CSA

Surge mod IMA - 240kA - 600Y/347VAC - 3P4W - T2 - CSA
  • MPN: MA8IMA24
  • UPC: 785901293026
  • PPN: SCH-MA8IMA24

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1787.42/ EA

Description

Surgelogic™ EMA and EBA series SPDs, MA8IMA24, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems.

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Eu Rohs Directive
Compliant with Exemptions
Rohs Exemption InformationYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Environment

Ambient Air Temperature For Operation
65-65 °C
Enclosure Material
black plastic
Nema Degree Of ProtectionNEMA 2
StandardsUL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285

Complementary

Height
158.8 mm
Connections - Terminals
terminals
Mounting Support
panel mounting
[Uc] Maximum Continuous Operating Voltage
420 V
Width
82.8 mm
Depth
68.3 mm
Network Number Of Phases
3 phases
Local Signallingstatus LED green normal operation
Short-Circuit Protection200 kA
Provided Equipmentalarm enable/disable switch
Surge Current240 kA per phase
Wiring Configuration4-wire
Nominal Discharge Current20 kA
[Ue] Rated Operational Voltage600Y/347 V AC

Specifications

Range Of Product
Surgelogic
Product Or Component Type
surge protection module
Accessory / Separate Part Categoryreplacement part
Device Short NameIMA
