Mersen

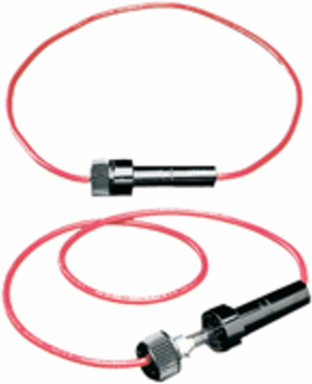

Mersen SFRB20 In-line Fuseholder 1-1/4 Inch x 1/4 Inch, 32V, Includes FSFE Fast-Acting Fuse

In-line Fuseholder 1-1/4 Inch x 1/4 Inch, 32V, Includes FSFE Fast-Acting Fuse
  • MPN: SFRB20
  • UPC: 782001244446
  • PPN: FER-SFRB20

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$15.09/ EA

Description

Bayonet Knob In-Line Fuseholders for FSFE fuses. Used at 32V or less with fuses rated up to 20A when proper spring for fuse size is installed.

Features

  • Molded body and knob are Black Thermoset (UL 94V0). Body and knob have .20" diameter hole for insulated wire. Knob is bayonet-lock type metal insert. Ambient temperature is -40 degrees C to +125 degrees C. Contact rivets are tin-plated brass designed for use with #14 AWG stranded wire. Includes fuse listed and 19" loop of #14 AWG red insulated wire.

Specifications

Product Details

Applications
32 V Automotive & Electronic circuits
Connection Terminal Type
Bare Wire Termination
Materials Contact
Brass
Lead Free
Consult Technical Services
ROHS Compliant
Consult Technical Services
AC Voltage
32 VAC
Ampere Range
4-20 A
Speed / CharacteristicIncludes FSFE Fast-Acting Fuse
MountingWire
Number of Poles1
DC Voltage32 VDC
Body StyleCylindrical
CE conformityConsult Technical Services
Body MaterialThermoplastic
