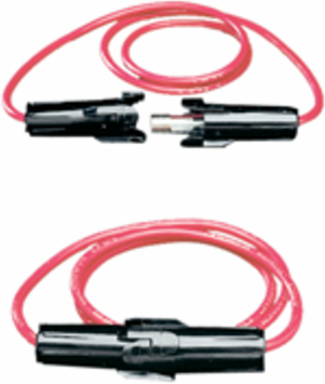

Mersen SFRT20 In-line Fuseholder 1-1/4 Inch x 1/4 Inch for FSFE Fuses, 4-20 A, 32 VDC
- MPN: SFRT20
- UPC: 782001244385
- PPN: FER-SFRT20
CAD
$15.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Twist-Lock In-Line Fuseholders for FSFE fuses. Used at 32V or less with fuses rated up to 20A when proper spring for fuse size is installed.
Features
- Molded black thermoplastic (UL 94V2).Ambient temperature is -40 degrees C to +75 degrees C. Contact rivets are tin-plated brass designed for use with #14 AWG. Includes fuse listed and 19" loop of #14 AWG red vinyl insulated wire.
Specifications
Product Details
| Body Style | Cylindrical |
|---|---|
| CE conformity | Consult Technical Services |
| ROHS Compliant | Consult Technical Services |
| Materials Contact | Brass |
| Body Material | Thermoplastic |
| Number of Poles | 1 |
| AC Voltage | 32 VAC |
| Lead Free | Consult Technical Services |
| DC Voltage | 32 VDC |
|---|---|
| Applications | Electronic circuits |
| Ampere Range | 4-20 A |
| Mounting | Wire |
| Wiring Range | #14 AWG |
| Connection Terminal Type | Bare Wire Termination |
| Speed / Characteristic | Includes FSFE Fast-Acting Fuse |
