Mersen

Mersen SFRB6 In-line SFRB-Size 1-1/4"X1/4" - Includes FSFE Fast-Acting Fuse

In-line SFRB-Size 1-1/4"X1/4" - Includes FSFE Fast-Acting Fuse
  • MPN: SFRB6
  • UPC: 782001244408
  • PPN: FER-SFRB6

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$16.60/ EA

Description

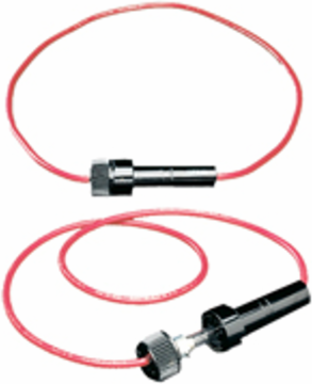

Bayonet Knob In-Line Fuseholders for FSFE fuses. Used at 32V or less with fuses rated up to 20A when proper spring for fuse size is installed.

Features

  • Molded body and knob are Black Thermoset (UL 94V0). Body and knob have .20" diameter hole for insulated wire. Knob is bayonet-lock type metal insert. Ambient temperature is -40 degrees C to +125 degrees C. Contact rivets are tin-plated brass designed for use with #14 AWG stranded wire. Includes fuse listed and 19" loop of #14 AWG red insulated wire.

Specifications

Product Details

Connection Terminal Type
Bare Wire Termination
Speed / Characteristic
Includes FSFE Fast-Acting Fuse
Lead Free
Consult Technical Services
CE conformity
Consult Technical Services
Body Style
Cylindrical
DC Voltage
32 VDC
Body Material
Thermoplastic
Materials ContactBrass
Ampere Range4-20 A
ROHS CompliantConsult Technical Services
AC Voltage32 VAC
Applications32 V Automotive & Electronic circuits
MountingWire
Number of Poles1
