Mersen

Mersen SFRU In-Line Fuseholder 1-1/4 Inch x 1/4 Inch with FSFE Fast-Acting Fuse, 20 Amp, 32 VDC

In-Line Fuseholder 1-1/4 Inch x 1/4 Inch with FSFE Fast-Acting Fuse, 20 Amp, 32 VDC
  • MPN: SFRU
  • UPC: 782001244460
  • PPN: FER-SFRU

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$14.08/ EA

Description

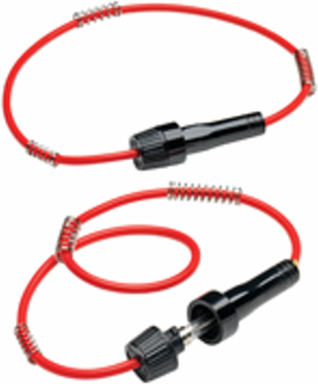

Universal In-Line Fuseholder supplied with 15" loop of #14AWGT red vinyl insulated wire frame and three springs in different lengths to accommodate FSFE size fuse

Features

  • Molded body and knob are Black Thermoset (UL 94V0). Body and knob have .20" diameter hole for insulated wire. Knob is bayonet-lock type metal insert. Ambient temperature is -40 degrees C to +125 degrees C. Contact rivets are tin-plated brass designed for use with #14 AWG stranded wire Includes fuse listed and 19" loop of #14 AWG red insulated wire.

Specifications

Product Details

Number of Poles
1
Lead Free
Consult Technical Services
Connection Terminal Type
Bare Wire Termination
DC Voltage
32 VDC
Mounting
Wire
Speed / Characteristic
Includes FSFE Fast-Acting Fuse
Materials Contact
Brass
Body Style
Cylindrical
StandardsSAE J554
AC Voltage32 VAC
CE conformityConsult Technical Services
Ampere Range20 A
Body MaterialThermoplastic
ROHS CompliantConsult Technical Services
Applications32V Automotive & Electronic Circuits
