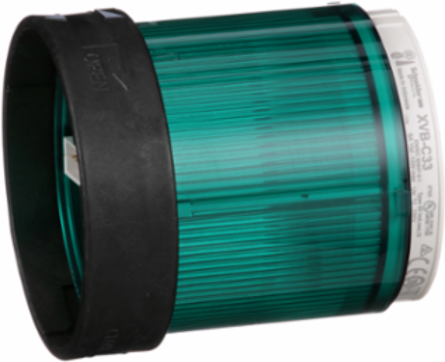

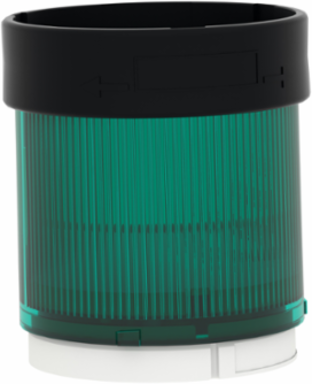

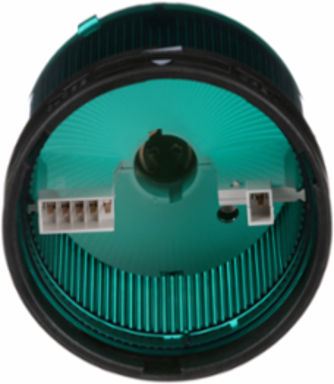

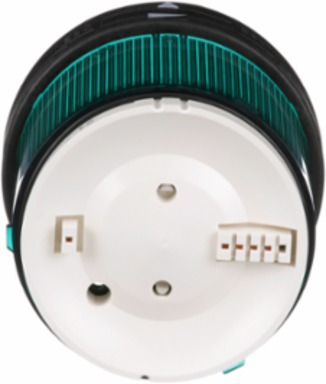

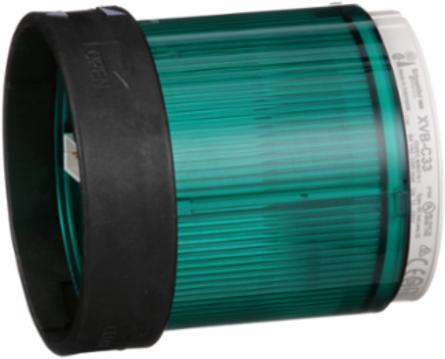

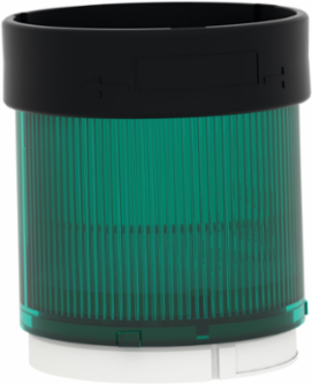

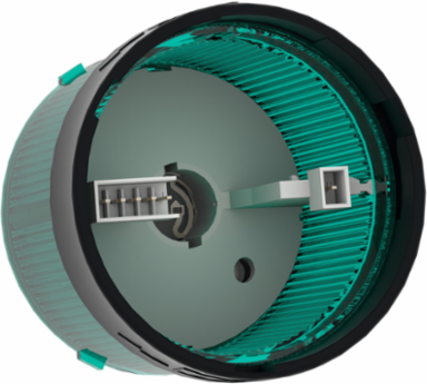

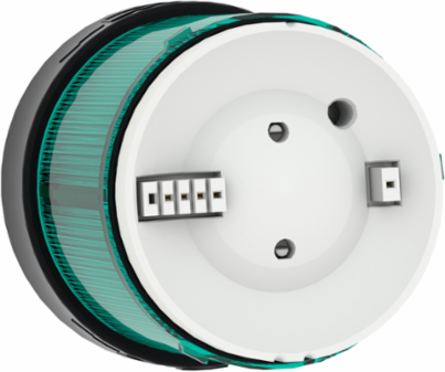

Schneider Electric XVBC33 Harmony XVB Green Illuminated Indicator Bank 70 mm, IP66, 250V
- MPN: XVBC33
- PPN: SCH-XVBC33
CAD
$97.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

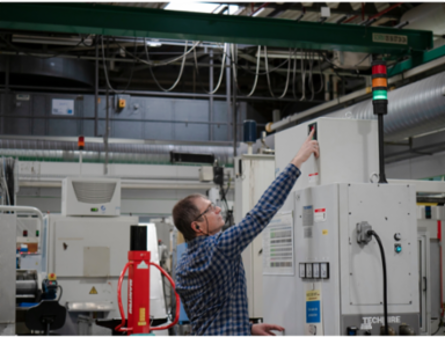

Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Features
- This green illuminated unit features a steady signaling profile designed for immediate, unambiguous status recognition from a distance. The high-performance polycarbonate lens distributes light evenly across its 70mm diameter, ensuring operators can verify standard, safe, or optimal operating conditions at a single glance, even in brightly lit industrial environments.
- Designed as a fully interchangeable component of the Schneider Electric Harmony XVB Universal range, the XVBC33 integrates with any XVBC base unit. This allows you to stack up to 5 individual signaling stages effortlessly, giving you the flexibility to customize your control panel or machinery status configurations without replacing your entire indicator bank setup.
- This flexible indicator bank lens accommodates a wide voltage threshold up to 250V AC/DC, giving you the freedom to choose your preferred illumination style. It accepts either an energy-efficient, long-lasting protected LED or a standard incandescent bulb with a BA 15d base up to 7W max, allowing you to match your facility's specific electrical wiring and legacy maintenance parameters perfectly.
- Built to survive punishing industrial environments, this lens assembly achieves an impressive IP66 ingress protection rating when mounted onto a standard base unit, alongside a NEMA Type 4X indoor rating. This advanced environmental sealing ensures your stack lights remain impervious to high-pressure water jets, heavy dust accumulation, and oil splashes, eliminating unexpected downtime in wet processing or milling sectors.
- Engineered to meet global industrial standards including UL 508, CSA C22-2 No 14, and EN/IEC 60947-5-1, this rugged polycarbonate indicator bank delivers exceptional mechanical durability with an IK05 impact resistance rating. It is thermally resilient enough to handle operating temperatures from -25 C to 70 C, providing heavy-duty, long-term compliance and physical reliability for critical manufacturing lines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, Singapore
Physical Attributes

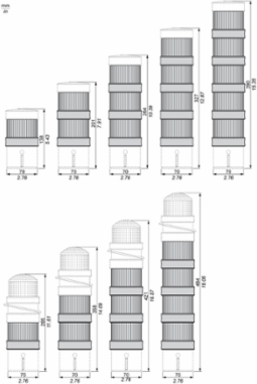

- Cad Overall Depth
- 70 mm
- Cad Overall Width
- 70 mm
Cad Overall Height63 mm
Complementary Attributes
- Maximum Power Dissipation In W
- 7 W
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bulb Type
- incandescent BA 15d, protected LED
- Carbon Footprint Of The Distribution Phase [A4]
- 0.31925653464070586, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0008192023540933992, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Beacon Or Indicator Bank Unit Type
- illuminated unit
- Electrical Shock Protection Class
- class I on support tube IEC 61140class II on base unit IEC 61140
- Light Source
- bulb not included, green
- Mounting Diameter
- 70 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Software Version
- v6.2-6
- Total Lifecycle Carbon Footprint
- 2 kg CO2 eq.
- Database Version
- 2024-04
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The major function of the Harmony XVB range of products is to offer optical or audio signalling, specifically to identify the various states or sequences of a machine or installation from a distance and through 360° in life span of 10 years.This product will be active for 73% of the time, with a power consumption of 0.72W and adhering to standards IEC 60947-5-1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
- Recyclability Potential In %
- 9
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Connections - Terminals
- screw clamp terminals, <= 1 x 1.5 mm² with cable end
- Package Weight(Lbs)
- 132.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCCC, EAC, CSA C22-2 No 14, UL 508
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.28126961170112214
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.3804547972888979
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Assembly Stylecustomer assembly, up to 5 units
Component NameXVBC
Important MessageXVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.
Materialpolycarbonate
Nominal Voltage Limit0.85...1.1 Un IEC 60947-5-1
Product Or Component Typeindicator bank
Range Of ProductHarmony XVB Universal
Signalling Typesteady
Sustainable PackagingYes
Pep CodeENVPEP0709007EN
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
[Ui] Rated Insulation Voltage250 V IEC 60947-1
[Us] Rated Supply Voltage<= 250 V<= 250 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531909001
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C LED, -25-50 °C LED, -25-70 °C incandescent, -25-70 °C incandescent-25-50 °C LED, -25-50 °C LED, -25-70 °C incandescent
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1.9818001459848194
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- UL type 4X UL indoor)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP0709007EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP0709007EN
Ip Degree Of ProtectionIP65 on fixing base XVBZ0. IEC 60529IP66 on base unit IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- indicator bank
Range Of ProductHarmony XVB Universal
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
