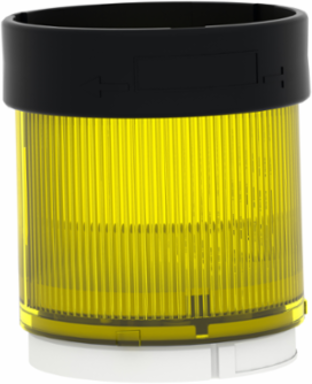

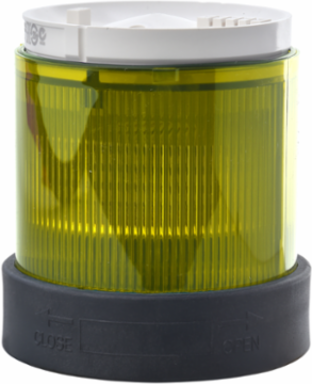

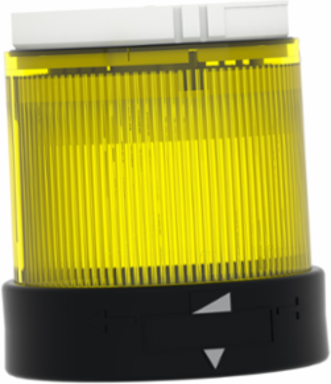

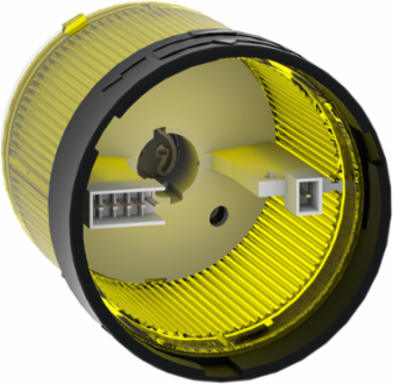

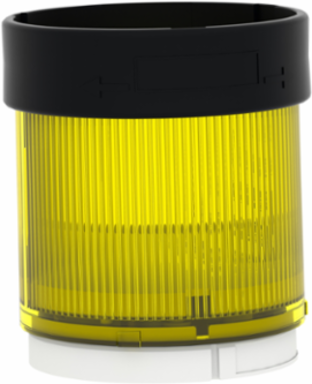

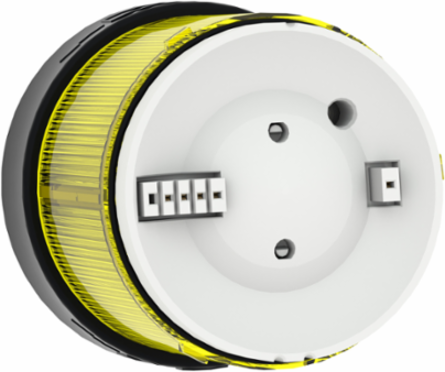

Schneider Electric XVBC38 Harmony XVB Illuminated Indicator Bank, Yellow, 70mm, IP66, Steady Light
- MPN: XVBC38
- PPN: SCH-XVBC38
CAD
$97.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

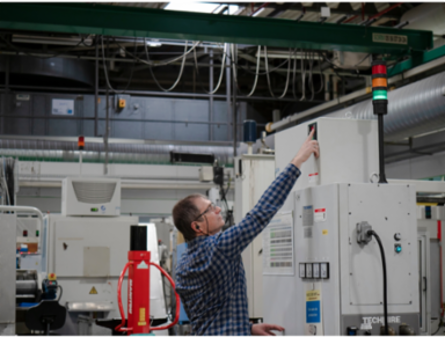

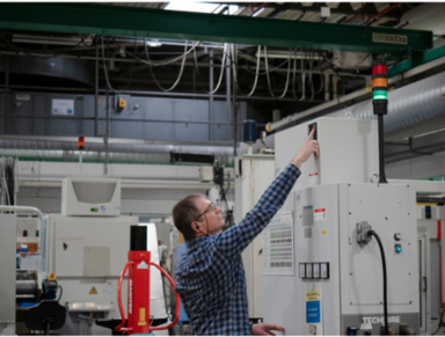

This Harmony XVB yellow illuminated unit is supplied with up to 250V AC/DC bulb, bulb order separately, steady light. This yellow indicating bank lens is designed as an illuminated unit to be connected with base and create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with base unit and make complete tower light. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, Singapore, United States |
|---|
Physical Attributes

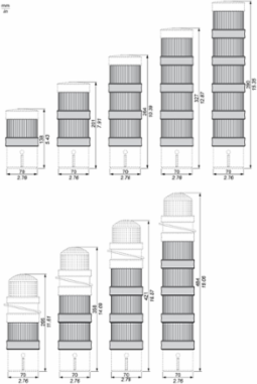

| Cad Overall Depth | 70 mm |
|---|---|
| Cad Overall Width | 70 mm |
| Cad Overall Height | 63 mm |
|---|
Complementary Attributes
| Maximum Power Dissipation In W | 7 W |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Bulb Type | incandescent BA 15d, protected LED |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0474910615, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0397247704, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 71 kg CO2 eq., 71.1087328767 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Beacon Or Indicator Bank Unit Type | illuminated unit |
| Electrical Shock Protection Class | class I on support tube IEC 61140class II on base unit IEC 61140 |
| Light Source | bulb not included, yellow |
| Mounting Diameter | 70 mm |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 73 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The main purpose of the Harmony XVB product range is to provide optical or audible signalling, in particular in order to indicate the different states or sequences of a machine or installation from a distance and through 360° for 10 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 153.3 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| [Ui] Rated Insulation Voltage | 250 V IEC 60947-1 |
| [Us] Rated Supply Voltage | <= 250 V<= 250 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8531909001 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | CCC, EAC, CSA C22-2 No 14, UL 508 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.2753398878 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 kg CO2 eq., 1.4437841259 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Assembly Style | customer assembly, up to 5 units |
| Component Name | XVBC |
| Important Message | XVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another. |
| Material | polycarbonate |
| Nominal Voltage Limit | 0.85...1.1 Un IEC 60947-5-1 |
| Product Or Component Type | indicator bank |
| Range Of Product | Harmony XVB Universal |
| Signalling Type | steady |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP0709007EN |
| Pep Verification Date | 2023-12-08 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; ID |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| Recyclability Potential In % | 9 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| Package Weight(Lbs) | 136.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-50 °C LED, -25-50 °C LED, -25-70 °C incandescent, -25-70 °C incandescent-25-50 °C LED, -25-50 °C LED, -25-70 °C incandescent |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 72.9150727223 |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | UL type 4X UL indoor) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP0709007EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP0709007EN |
| Ip Degree Of Protection | IP65 on fixing base XVBZ0. IEC 60529IP66 on base unit IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-08 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | indicator bank |
|---|
| Range Of Product | Harmony XVB Universal |
|---|
ETIM
| ETIM 8 | EC000232 |
|---|
| ETIM 9 | EC000232 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
