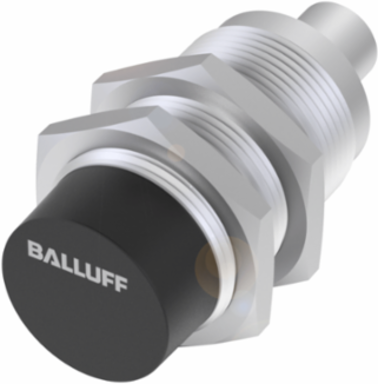

Balluff BIC 2B0-ITA50-M30MF1-SM4A5A Inductive couplers for IO-Link signal transmission BIC 2B0-ITA50-M30MF1-SM4A5A
- MPN: BIC 2B0-ITA50-M30MF1-SM4A5A
- PPN: BAL-BIC007E
CAD
$1175.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With inductive couplers, power and data are transferred contactlessly across an air gap. This renders mechanical plug-in contacts superfluous. If our bidirectional coupling system is used with IO-Link, the data can also be transmitted in both directions.
Documentation & Downloads
Specifications
Key Specifications
- Function
- IO-Link signal transmission
- Transmission distance
- 0-10 mm
- Interface
- IO-Link 1.1
- Output voltage
- 24 VDC
- Output current max.
- 5 A / 0.12 ms
- Dimension
- Ø 30 x 72.1 mm
- IP rating
- IP67
- Additive cycle time
- Device + 2.0 ms
- Process data OUT
- 0…32 bytes
Signal typebi-directional
ComponentRemote
ConnectionConnector, M12x1-Male, 5-pin
Rated output current650 mA
Housing materialBrass
Ambient temperature-5-55 °C
Transfer rateCOM2 (38.4 kBaud)
Process data IN0…32 bytes
SIO modeyes
