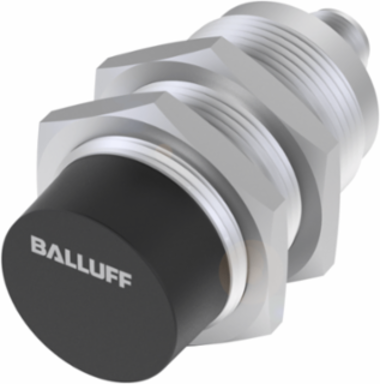

Balluff BIC 1B0-ITA50-M30MF1-SM4A5A Inductive couplers for IO-Link signal transmission BIC 1B0-ITA50-M30MF1-SM4A5A
- MPN: BIC 1B0-ITA50-M30MF1-SM4A5A
- PPN: BAL-BIC007L
CAD
$1128.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
With inductive couplers, power and data are transferred contactlessly across an air gap. This renders mechanical plug-in contacts superfluous. If our bidirectional coupling system is used with IO-Link, the data can also be transmitted in both directions.
Documentation & Downloads
Specifications
Key Specifications
| Function | IO-Link signal transmission |
|---|---|
| Transmission distance | 0-10 mm |
| Interface | IO-Link 1.1 |
| Rated operating voltage Ue | 24 VDC |
| Dimension | Ø 30 x 66.2 mm |
| IP rating | IP67 |
| Additive cycle time | Device + 2.0 ms |
| Process data OUT | 0…32 bytes |
| Signal type | bi-directional |
|---|---|
| Component | Base |
| Connection | Connector, M12x1-Male, 5-pin |
| Housing material | Brass |
| Ambient temperature | -5-55 °C |
| Transfer rate | COM2 (38.4 kBaud) |
| Process data IN | 0…32 bytes |
| SIO mode | yes |
