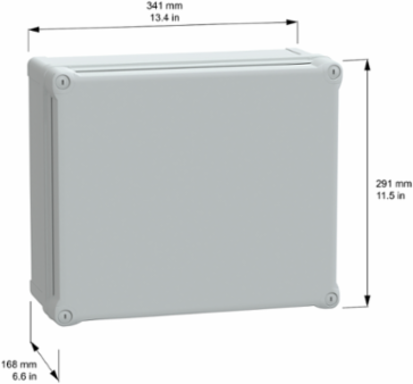

Schneider Electric NSYTBP342916H Industrial Polycarbonate Box IP66 IK08 341mm Height 291mm Width
- MPN: NSYTBP342916H
- PPN: SCH-NSYTBP342916H
CAD
$83.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

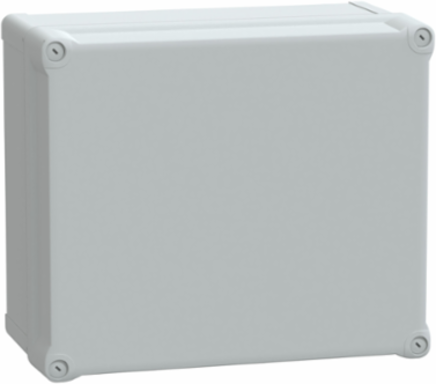

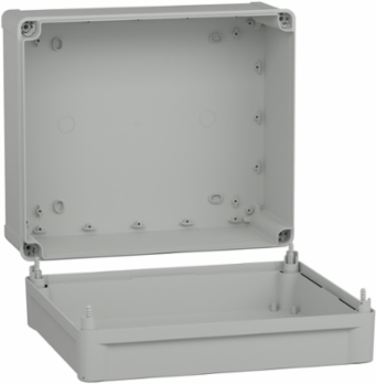

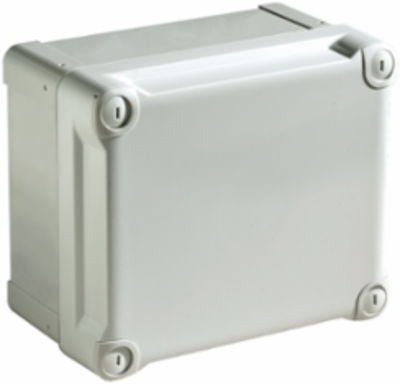

Designed for durability and versatility, this industrial box from Schneider Electric is ideal for a variety of applications. Constructed from high-quality polycarbonate, it boasts an impressive fire resistance of up to 960 C and is built to withstand harsh environmental conditions, with an IP66 rating ensuring protection against dust and water ingress. The one-piece molded body features a high plain cover secured by captive screws, making installation and maintenance straightforward. With a robust IK08 impact resistance rating, this enclosure is suitable for outdoor use when mounted with a canopy or shelter, and it operates effectively in a wide temperature range from -25 C to 80 C. Perfect for those seeking a reliable solution for their industrial needs, it combines functionality with a sleek gray finish (RAL 7035).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Hungary |
|---|
| Depth | 168 mm |
|---|
Physical Attributes
| Color | Gray RAL 7035) |
|---|---|
| Internal Height | 325 mm |
| Internal Depth | 160 mm |
|---|---|
| Internal Width | 275 mm |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 body, 1 cover4 cover screw |
| Carbon Footprint Of The Distribution Phase [A4] | 3.7840250349671525, 4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.37644988582338196, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2025-09-16 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Cover Fixing | plastic screws |
| Electrical Insulation Class | class II |
| Energy Efficiency Optimized | False |
| Lock Type | captive screw flat outside sealed area |
| Mounting Location | outdoor (with canopy or shelter and anticondensation valve) |
| Product Name | PanelSeT TBP |
| Range | PanelSeT |
| Returnability | No |
| Sustainable Packaging | No |
| Type Of Front Cover | high plain cover |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Hungary, HU |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Height Nominal | 341 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 3925900000 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | TÜV, UL |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 2.4721287694591267 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 11 kg CO2 eq., 10.86204027165835 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2012016EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1926 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Body Type | one piece moulded |
| Device Application | multi-purpose |
| Enclosure Mounting | wall mounted |
| Fire Resistance | 960 °C |
| Material | polycarbonate |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | industrial box |
| Removable Parts | cover by captive screws |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 17 kg CO2 eq. |
| Pep Code | ENVPEP2012016EN |
| Pep Verification Date | 2024-08-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Width Nominal | 291 mm |
| Package Weight(Lbs) | 1.906 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Ambient Air Temperature For Storage | -15-60 °C, -15-60 °C |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 17.49464396190801 |
| Environmental Disclosure | ENVPEP2012016EN |
| Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-08-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Operation | -25-80 °C, -25-80 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2012016EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2012016EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | industrial box |
|---|
ETIM
| ETIM 8 | EC000058 |
|---|
| ETIM 9 | EC000058 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
