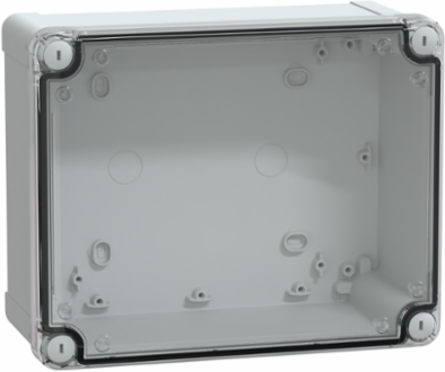

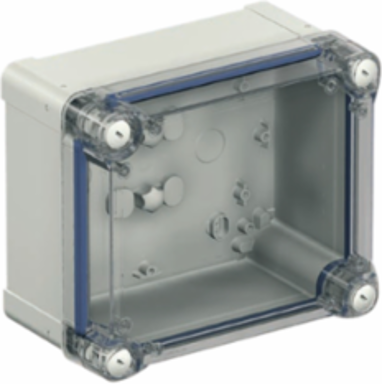

Schneider Electric NSYTBP241910HT Thalassa Industrial Box IP66 IK08 241x194x107 mm Polycarbonate
- MPN: NSYTBP241910HT
- PPN: SCH-NSYTBP241910HT
CAD
$114.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

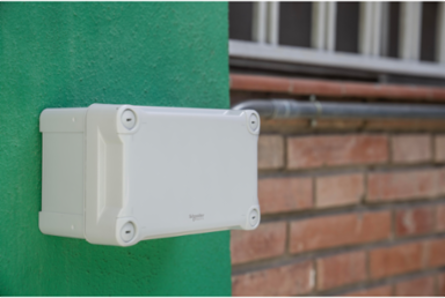

Crafted by Schneider Electric, this Thalassa Industrial Box is designed for superior protection in demanding environments. With an IP66 rating, it ensures that your electrical components are safeguarded against dust and powerful water jets, making it ideal for outdoor applications. Constructed from robust polycarbonate, it also offers IK08 impact resistance, enhancing durability in rugged conditions. Measuring 241x194x107 mm, this enclosure provides ample space for electrical components while maintaining a reliable and secure setup. Perfect for various gang box applications, it stands out for its resilience and protective features.
Documentation & Downloads
Specifications
Additional
- Device Application
- multi-purpose
- Mounting Location
- outdoor (with canopy or shelter and anticondensation valve)
- Width
- 194 mm (7.64 in)
- Internal Height
- 225 mm (8.86 in)
- Internal Depth
- 100 mm (3.94 in)
- Material
- polycarbonate
- Electrical Insulation Class
- class II
- Type Of Front Cover
- high transparent cover
- Lock Type
- captive screw flat outside sealed area
- Ip Degree Of Protection
- IP66 NEMA 4.4X
- Standards
- IEC 62208, UL 508 A
- Fire Resistance
- 960 b0C (1760 b0F)
- Enclosure Mounting
- wall mounted
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Regulation
- Free of Substances of Very High Concern above threshold
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2012016EN
- Warranty
- 18 months
- Product Name
- Thalassa TBP
Ambient Air Temperature For Operation-25 to 80 0C (-13 to 176 b0F)

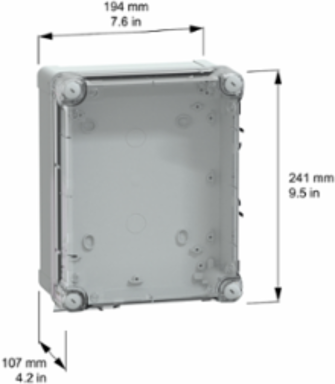

Height241 mm (9.49 in)
Depth107 mm (4.21 in)
Internal Width175 mm (6.89 in)
Net Weight0.8 kg (1.76 lb)
Colourgrey RAL 7035, transparent
Body Typeone piece moulded
Cover Fixingplastic screws
Removable Partscover by captive screws
Ik Degree Of ProtectionIK08 conforming to IEC 62262
Product CertificationsTdcV, UL
Ambient Air Temperature For Storage-15 to 60 b0C (5 to 140 b0F)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Reach Free Of SvhcYes
Mercury FreeYes
Circularity ProfileENVEOLI2012016EN
Device Composition1 body, 1 cover, 4 cover screws
RangeThalassa
