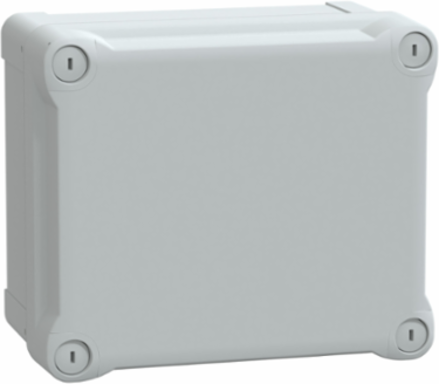

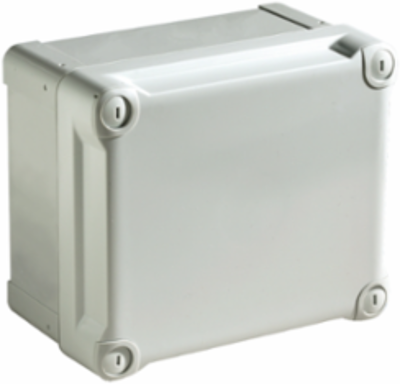

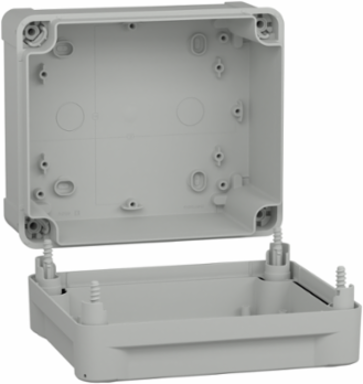

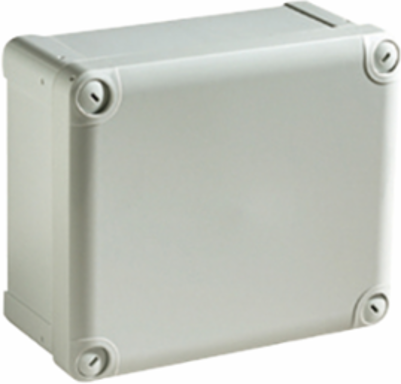

Schneider Electric NSYTBS191610H Thalassa TBS ABS Industrial Box 164x105x193 mm, IP66, IK07, Gray RAL 7035
Schneider Electric NSYTBS191610H Thalassa TBS ABS Industrial Box 164x105x193 mm, IP66, IK07, Gray RAL 7035
- MPN: NSYTBS191610H
- PPN: SCH-NSYTBS191610H
- UNSPSC: 39121303
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$15.42/ EA
Description

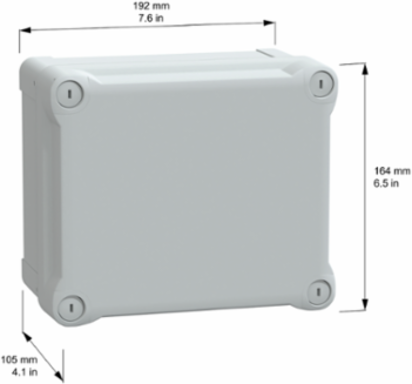

Thalassa TBS industrial ABS box with opaque cover H40. Int is 175 x 150 x 100 mm. Ext is 193 x 164 x 105 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Internal Height
- 175 mm
Internal Depth100 mm
Internal Width150 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 cover, 4 cover screw
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 1 kg CO2 eq., 1.0239798989871154
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 2 kg CO2 eq., 1.8828228635304969
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- 1 - GSC certified
- Function Option
- Standard
- Cover Fixing
- plastic screws
- Energy Efficiency Optimized
- False
- Lock Type
- captive screw flat outside sealed area
- Package Weight Lbs
- 514.000 g
- Product Or Component Type
- industrial box
- Removable Parts
- cover by captive screws
- Sustainable Packaging
- No
- Type Of Front Cover
- high plain cover
- Pep Code
- ENVPEP2312020EN
- PCR Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Unit
- Unit
- Product Manager
- JULIA DESLCAZO
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A41.020455859377291, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.12017850998579277, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function Option IdSTANDARD
Average Percentage Of Recycled Plastic Content45 %
Enclosure Mountingwall mounted
Fire Resistance650 °C IEC 60695-2-11
MaterialABS with 45% of post-industrial recycled content
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
ReturnabilityNo
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Relationship TypeCompatible relationship
Pep Verification Date2024-07-01
PSR VersionPSR-0005-ed3.1-EN-2023 12 08
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 4.047437131880696
- IP Degree Of Protection
- IP66 conforming to NEMA 4.4X
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-07-01
- PSR Version
- PSR-0005-ed3.1-EN-2023 12 08
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Mercury FreeYes
Environmental DisclosureENVPEP2312020EN
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP2312020EN
PCR VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- industrial box
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
