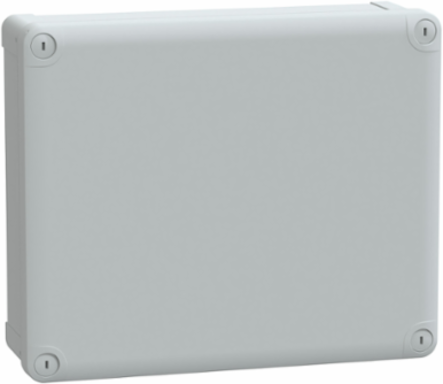

Schneider Electric NSYTBS29248 ABS industrial box, PanelSeT TBS, 241x88x291mm, int. 225x80x275mm, low plain cover, IP66, IK07, RAL 7035

ABS industrial box, PanelSeT TBS, 241x88x291mm, int. 225x80x275mm, low plain cover, IP66, IK07, RAL 7035
ABS industrial box, PanelSeT TBS, 241x88x291mm, int. 225x80x275mm, low plain cover, IP66, IK07, RAL 7035
ABS industrial box, PanelSeT TBS, 241x88x291mm, int. 225x80x275mm, low plain cover, IP66, IK07, RAL 7035
ABS industrial box, PanelSeT TBS, 241x88x291mm, int. 225x80x275mm, low plain cover, IP66, IK07, RAL 7035
ABS industrial box, PanelSeT TBS, 241x88x291mm, int. 225x80x275mm, low plain cover, IP66, IK07, RAL 7035
ABS industrial box, PanelSeT TBS, 241x88x291mm, int. 225x80x275mm, low plain cover, IP66, IK07, RAL 7035
ABS industrial box, PanelSeT TBS, 241x88x291mm, int. 225x80x275mm, low plain cover, IP66, IK07, RAL 7035
ABS industrial box, PanelSeT TBS, 241x88x291mm, int. 225x80x275mm, low plain cover, IP66, IK07, RAL 7035
ABS industrial box, PanelSeT TBS, 241x88x291mm, int. 225x80x275mm, low plain cover, IP66, IK07, RAL 7035
  • MPN: NSYTBS29248
  • PPN: SCH-NSYTBS29248

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$26.08/ EA

Description

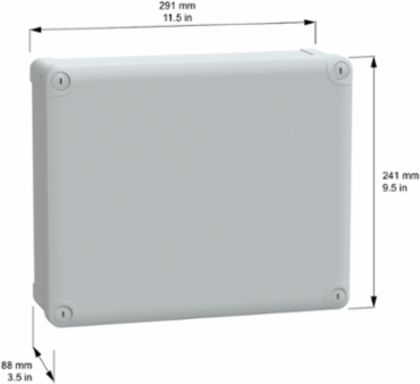

Thalassa TBS industrial ABS box with opaque cover H20. Int is 275 x 225 x 160 mm. Ext is 291 x 241 x 88 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Specifications

Physical Attributes

Color
Gray RAL 7035)
Internal Height
275 mm
Internal Depth80 mm
Internal Width225 mm

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition

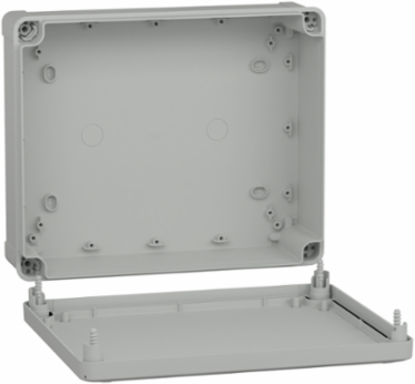

1 body, 1 cover, 4 cover screw
Carbon Footprint Of The End Of Life Phase C1 To C4
2 kg CO2 eq., 1.6833910790741486
Carbon Footprint Of The Manufacturing Phase A1 To A3
3 kg CO2 eq., 3.09530217837212
Local Data Status
Publishable
Return Indicator
N
Weee Scope
Out
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1904
China Rohs In Scope
No
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Average Percentage Of Recycled Plastic Content
45 %
Cover Fixing
plastic screws
Electrical Insulation Class
class II
Energy Efficiency Optimized
False
Lock Type
captive screw flat outside sealed area
Product Availability
Non-Stock - Not normally stocked in distribution facility
Range
PanelSeT
Returnability
No
Sustainable Packaging
No
Type Of Front Cover
low plain cover
Warranty In Months
18
Database Version
2023-02
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unit
Unit
Energy Model - Manufacturing [A1-a3]
Hungary, HU
Energy Model - Use [B6]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %
1
Pn
1
Width Nominal
241 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A41.6775976676533286, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1975697294513519, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2024-01-12
Stocking FlagY
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Body Typeone piece moulded
Device Applicationmulti-purpose
Enclosure Mountingwall mounted
Fire Resistance650 °C IEC 60695-2-11
MaterialABS with 45% of post-industrial recycled content
Product Or Component Typeindustrial box
Removable Partscover by captive screws
Software Versionv6.1
Total Lifecycle Carbon Footprint7 kg CO2 eq.
Silicone FreeYes
Pep CodeENVPEP2312020EN
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Offer Owner Code190789
Height Nominal291 mm
Certificate AgencyTÜV

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Storage
-15-40 °C, -15-40 °C
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Silicon Free
Yes
Environmental Disclosure
ENVPEP2312020EN
Ip Degree Of Protection
IP66 conforming to NEMA 4.4X
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2024-07-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint6.653860654550949
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2312020EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type
industrial box

ETIM

ETIM 8
EC000058
ETIM 9EC000058

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Specifications

Country of Origin
France, Hungary
Depth88 mm
