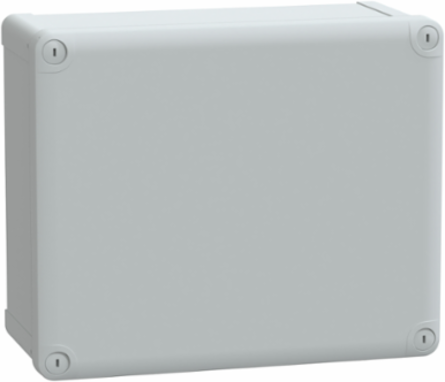

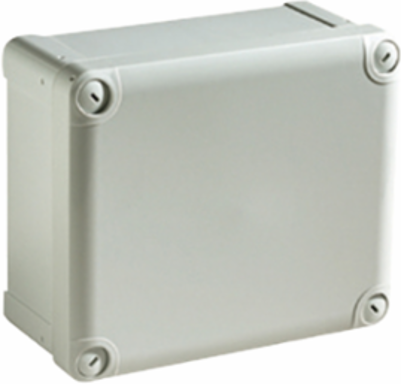

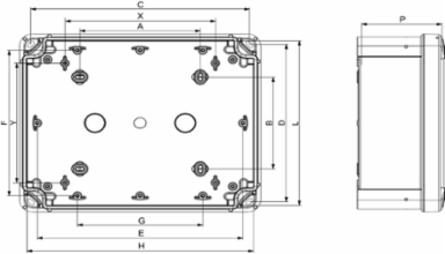

Schneider Electric NSYTBS292412 Thalassa TBS ABS Industrial Box, 291x241x128mm, IP66, IK07, Wall Mounted
Schneider Electric NSYTBS292412 Thalassa TBS ABS Industrial Box, 291x241x128mm, IP66, IK07, Wall Mounted
- MPN: NSYTBS292412
- PPN: SCH-NSYTBS292412
- UNSPSC: 39121303
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$26.95/ EA
Description

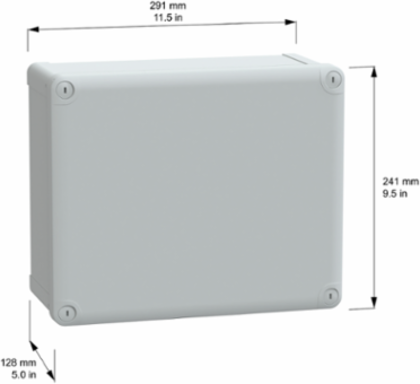

Thalassa TBS industrial ABS box with opaque cover H20. Int is 275 x 225 x 120 mm. Ext is 291 x 241 x 128 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Features
- Total electrical insulation (Class II) to avoid electric risks
- High protection against dust and water (IP66)
- Hard impact resistance (IK07)
- Reinforced edges of the cover to ensure its robustness and perfect support during customization operations
- Easy to use : only a flat-bladed screwdriver is required
- Easy to install : 3 methods of fixing the box to its support
- Smart design : fixing studs on the cover
- Long life lasting without maintenance
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Internal Height
- 275 mm
Internal Depth120 mm
Internal Width225 mm
Conformance Attributes
- Product Certifications
- TÜV
StandardsIEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition

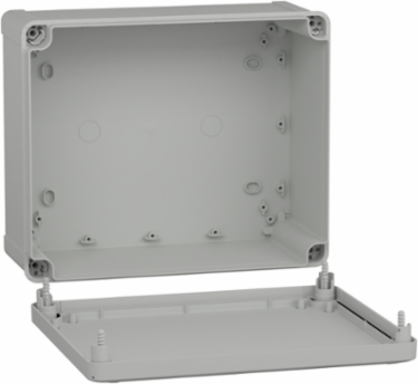

- 1 body, 1 cover, 4 cover screw
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 2 kg CO2 eq., 1.9921787918037264
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 4 kg CO2 eq., 3.663079501032095
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Average Percentage Of Recycled Plastic Content
- 45 %
- Cover Fixing
- plastic screws
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- captive screw flat outside sealed area
- Package Weight Lbs
- 1.015 kg
- Product Or Component Type
- industrial box
- Removable Parts
- cover by captive screws
- Sustainable Packaging
- No
- Type Of Front Cover
- low plain cover
- Stocking Flag
- Y
- Pep Code
- ENVPEP2312020EN
- Pep Verification Date
- 2024-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A41.9853226836134066, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.23381033071165908, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2024-01-12
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Body Typeone piece moulded
Device Applicationmulti-purpose
Enclosure Mountingwall mounted
Fire Resistance650 °C IEC 60695-2-11
MaterialABS with 45% of post-industrial recycled content
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
ReturnabilityNo
Total Lifecycle Carbon Footprint8 kg CO2 eq.
Medium DescABS industrial box, PanelSeT TBS, 241x128x291mm, int. 225x120x275mm, low plain cover, IP66, IK07, RAL 7035
Product Kit IdentifierN
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Hungary, HU
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 7.874391307160887
- Ambient Air Temperature For Storage
- -15-40 °C
- IP Degree Of Protection
- IP66 conforming to NEMA 4.4X
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-60 °C
Environmental DisclosureENVPEP2312020EN
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP2312020EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- industrial box
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 128 mm
