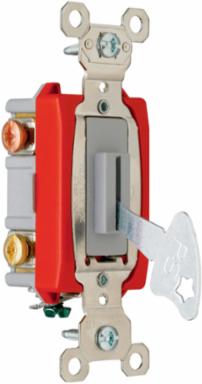

Pass & Seymour PS20AC3L Heavy Duty Lock Switch 20A 120/277V Gray, 3.281 Inch Height
- MPN: PS20AC3L
- UPC: 785007195637
- PPN: P-S-PS20AC3L
CAD
$83.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Heavy Duty Lock Switch 20A 120/277V Gray, 3.281 Inch Height
Features
- External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
- Cam controls fast ''make'' and positive ''break'' to minimize arcing.
- Heavy-duty bumper pads for quiet operation.
- High strength thermoplastic polycarbonate toggle.
- Back body made of glass-reinforced nylon.
- Locking support provides resistance to face and back body separation.
- Oversized silver alloy contacts for long life and better heat dissipation.
- Grounding terminal is standard.
- Shallow design for ease of installation.
- Strap nickel-plated steel with integral ground.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.073 in
- Height
- 3.281 in
- Finish
- Matte
- Material
- Thermoplastic
- Type
- Switch
- Load Type
- LED
- Amperage
- 20.0 A
- Voltage
- 120 VAC
- Standard
- FEDSPEC
- Number of Gangs
- 1
- Load Type
- Universal
- Load Type
- Fluorescent
- Load Type
- Incandescent
- Number of Switches
- 1.0
- Throw Type
- Double Throw
- Features
- Chemical Resistant
- Application Sector
- Industrial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Special Features
- Heavy duty switch, back & side wire, with lock
ColorGray
Width1.32 in
Country of OriginMexico
Product LinePass & Seymour
Load TypeCFL
StandardUL20
Load TypeXenon
Voltage277 VAC
Load TypeHalogen
Switch TypeToggle
Indoor/OutdoorIndoor
Number of Poles3-Way
Mounting TypeWall Box
Wall Plate IncludedNo
Requires Neutral WireNo
Application SectorCommercial
Load Rating20 A @ 120/277 VAC
Wire Connection TypeScrew Terminals
Terminal Accommodation#14 AWG - #10 AWG
