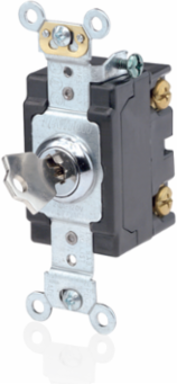

Leviton 1221-2KL 20 Amp Key Locking Toggle Switch, Single-Pole, 120/277V, Extra Heavy-Duty

MPN: 1221-2KL
UPC: 078477361986
PPN: LEV-1221-2KL

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$105.98/ EA

Qty:

Loading add to cart quantity...

Description

20 Amp, 120/277 Volt, Key Locking Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired

Features

Levitons Extra Heavy-Duty AC Key Locking Switches are the perfect choice for public use areas in schools/universities and pediatric facilities. Operable only with the mating key, it prevents unauthorized personnel from turning the switch ON or OFF.

Specifications

Standards and Certifications

ANSI: C-73

NEMA: WD-1 & WD-6

UL Standard: UL 20

CSA C22.2 No. 111File #152105

NOM057

Warranty10-Year Limited

Material Specifications

Body Material: Thermoplastic

Strap MaterialSteel

Mechanical Specifications

Product ID: Ratings are permanently marked on device

Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired

Termination: Back or Side Wire

Screw Terminal Torque14-18 in-lbs

Terminal IDBrass-Hot Black-Hot White-Neutral Green-Gnd

Specifications

Country of Origin: Mexico

RoHS CompliantFalse

Product Features

Device Type: Key Lock Barrel Switch

Grade: Extra Heavy-Duty Industrial Specification Grade

FunctionSingle-Pole

Environmental Specifications

Flammability: Rated V-2 per UL 94

Operating Temperature-40°C to 65°C

Electrical Specifications

Amperage: 20 A

Endurance: 50,000 cycles minimum

Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Voltage: 120/277 VAC

Dielectric VoltageWithstands 1500V for 1 minute

GroundingSelf-Grounding

Temperature RiseMaximum 30 degrees C rise

AC Horsepower Ratings

HP Rating: 1HP-120V 2HP-240V-277V

Max. Amperage16 Amp
