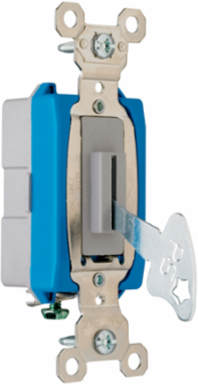

Pass & Seymour PS15AC1L Industrial Extra Heavy Duty Lock Switch 15A 120/277V Gray
- MPN: PS15AC1L
- UPC: 785007195590
- PPN: P-S-PS15AC1L
CAD
$49.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Industrial Extra Heavy Duty Lock Switch 15A 120/277V Gray
Features
- One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
- Impact- and chemical-resistant cover.
- Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
- One-piece nickel-plated brass strap for superior corrosion-resistance.
- Auto-ground clip assures positive ground.
- Cam control and spring actuator for positive ''makes and breaks.''
- Heavy-duty bumpers for quiet, smooth operation.
- Locking support provides resistance to face and back body separation.
- Oversized silver-alloy contacts for long life and better heat dissipation.
- Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
- Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
- Grounding terminal is standard with screw-pressure plate back wire.
- Shallow design for easier installation.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.073 in |
|---|---|
| Height | 3.281 in |
| Load Type | CFL |
| Country of Origin | Mexico |
| Amperage | 15.0 A |
| Voltage | 277 VAC |
| Standard | FEDSPEC |
| Number of Gangs | 1 |
| Load Type | Universal |
| Indoor/Outdoor | Indoor |
| Load Type | Incandescent |
| Number of Switches | 1.0 |
| Throw Type | Single Throw |
| Color | Gray |
| Material | Thermoplastic |
| Features | Chemical Resistant |
| Application Sector | Commercial |
| Load Rating | 15 A @ 120/277 VAC |
| Wire Connection Type | Screw Terminals |
| Terminal Accommodation | #14 AWG - #10 AWG |
| Type | Switch |
|---|---|
| Width | 1.32 in |
| Load Type | LED |
| Standard | UL20 |
| Load Type | Xenon |
| Voltage | 120 VAC |
| Load Type | Halogen |
| Switch Type | Toggle |
| Switch Type | Locking |
| Load Type | Fluorescent |
| Mounting Type | Wall Box |
| Wall Plate Included | No |
| Requires Neutral Wire | No |
| Finish | Matte |
| Product Line | Pass & Seymour |
| Number of Poles | Single Pole |
| Application Sector | Industrial |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Special Features | Heavy duty switch, back & side wire, shallow design for ease of installation |
