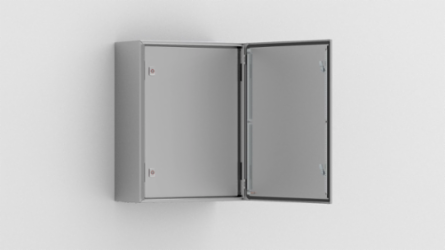

nVent Hoffman ADIS04030 Inner Door 400 x 300 mm Stainless Steel 304, Brushed Finish, IP 2XC
- MPN: ADIS04030
- UPC: 783510116880
- PPN: HOF-ADIS04030
CAD
$498.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Displays and indicators can be mounted on a surface within the enclosure while covering other components. This Inner Doors, ADIS, ADIS04030 item measures 400x300xmm has a material of Stainless Steel 304 color Unpainted, finish Brushed.
Features
- Description: For controls, meters, lamps, etc. Hinges can be mounted to allow left or right hand opening (Machining is required). Double-bit 3 mm lock, 800 mm high doors and above have 2 locks. Usable depth between inner and external door: 35 mm, adjustable depth position with AMG accessory. Workable area: H-55, W-108. 19" version available on request.
- Material: Door 1.5 mm AISI 304 stainless steel and vertical top and bottom profiles 2 mm, AISI 304 stainless steel.
- Protection: IP 2XC.
- Finish: 400 pre-grained stainless steel.
- Pack quantity: Inner door, two vertical profiles, top and bottom profiles and mounting accessories.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 300
- Door Size (H x W)
- 345 x 192
- Works With
- IEC
- Protection Rating
- IP2XC
- Material
- Stainless Steel 304
- Window Size
- 345 x 192
Height (H)400
Depth (D)15
Latch Quantity1
Enclosure MaterialMild Steel
Product FamilyWall Mounted
FinishBrushed
