nVent Hoffman ADIS12080 Inner Door 1200 x 800 Inch, Stainless Steel 304, Brushed Finish
- MPN: ADIS12080
- UPC: 783510117221
- PPN: HOF-ADIS12080
CAD
$1142.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

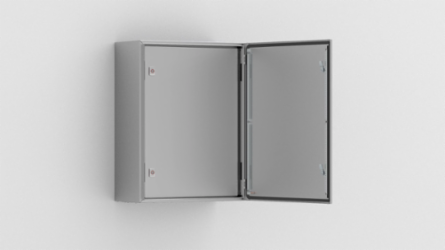

Displays and indicators can be mounted on a surface within the enclosure while covering other components. This Inner Doors, ADIS, ADIS12080 item measures 1145x692x15mm has a material of Stainless Steel 304 color Unpainted, finish Brushed.
Features
- Description: For controls, meters, lamps, etc. Hinges can be mounted to allow left or right hand opening (Machining is required). Double-bit 3 mm lock, 800 mm high doors and above have 2 locks. Usable depth between inner and external door: 35 mm, adjustable depth position with AMG accessory. Workable area: H-55, W-108. 19" version available on request.
- Material: Door 1.5 mm AISI 304 stainless steel and vertical top and bottom profiles 2 mm, AISI 304 stainless steel.
- Protection: IP 2XC.
- Finish: 400 pre-grained stainless steel.
- Pack quantity: Inner door, two vertical profiles, top and bottom profiles and mounting accessories.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 692 |
| Door Size (H x W) | 1145 x 692 |
| Works With | IEC |
| Protection Rating | IP2XC |
| Material | Stainless Steel 304 |
| Height (H) | 1,145 |
|---|---|
| Depth (D) | 15 |
| Latch Quantity | 2 |
| Enclosure Material | Mild Steel |
| Product Family | Wall Mounted |
| Finish | Brushed |
