Blackburn

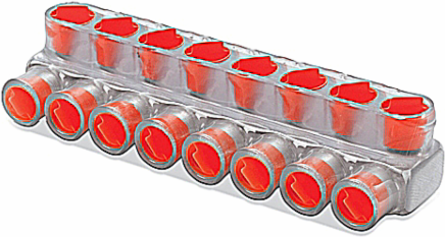

Blackburn PSB8359C Insulated Pedestal Connectors - 8 Ports, 2.51 Inch x 2.12 Inch x 7.67 Inch

Insulated Pedestal Connectors - 8 Ports, 2.51 Inch x 2.12 Inch x 7.67 Inch
  • MPN: PSB8359C
  • PPN: T-B-PSB8359C

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$251.19/ EA

Description

Insulated Pedestal Connector Bar - Type PSB-C, 350 Series, Number or Ports 8, Cable Range #12-350

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121446 Wire terminal connector kit
Brand Name
Blackburn
Special Features
Port-separated clear plastic cover provides insulation against accidental contact during insulation. Dual Rated for use with Aluminum or Coper Conductors. Contax Oxide Inhibitor standard in all Conductor Ports.
Size
2.51 inches high x 2.12 inches wide x 7.67 inches long
Color
Clear Cover
IGCC4666 Wire terminal connector kit
TypePedestal Connectors & Covers
StandardANSI C119.4
MaterialBars - Aluminum Alloy 6061-T6, Cover Clear Plastic
InsulationYes

Packaging

Outer Quantity
12
Weight Uom
6.25 lbs. per 100
Outer Dimensions (inches)13.8x13.4x9.8
