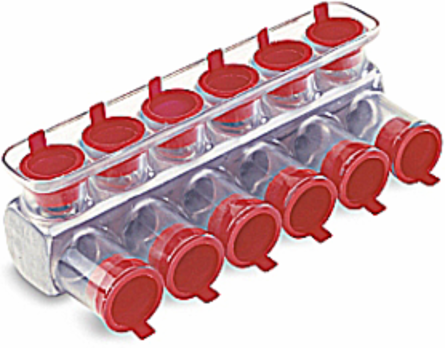

Blackburn PSB6359C Insulated Pedestal Connector Bar 6 Ports Size 2.51 Inch x 2.12 Inch x 5.85 Inch
- MPN: PSB6359C
- UPC: 078378683095
- PPN: T-B-PSB6359C
CAD
$112.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Insulated Pedestal Connector Bar - Type PSB-C, 350 Series, Number or Ports 6, Cable Range #12-350
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121446 Wire terminal connector kit |
|---|---|
| Brand Name | Blackburn |
| Special Features | Port-separated clear plastic cover provides insulation against accidental contact during insulation. Dual Rated for use with Aluminum or Coper Conductors. Contax Oxide Inhibitor standard in all Conductor Ports. |
| Size | 2.51 inches high x 2.12 inches wide x 5.85 inches long |
| Color | Clear Cover |
| IGCC | 4666 Wire terminal connector kit |
|---|---|
| Type | Pedestal Connectors & Covers |
| Standard | ANSI C119.4 |
| Material | Bars - Aluminum Alloy 6061-T6, Cover Clear Plastic |
| Insulation | Yes |
Packaging
| Outer Quantity | 12 |
|---|---|
| Weight Uom | 93.13 lbs. per 100 |
| Outer Dimensions (inches) | 13.187x7.75x7 |
|---|
