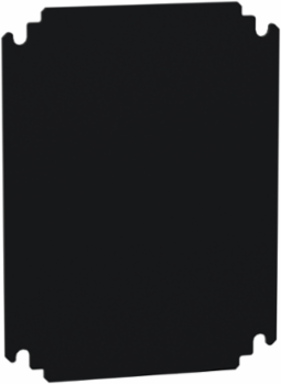

Schneider Electric NSYMB3025 Insulating Mounting Plate 300mm x 250mm, 4mm Thick, Bakelite Material
- MPN: NSYMB3025
- PPN: SCH-NSYMB3025
CAD
$14.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This insulating mounting plate from Schneider Electric is engineered for optimal use in automation and control applications, providing a reliable foundation for various installations. Measuring 300mm by 250mm, with a robust 4mm thickness, it is crafted from high-quality Bakelite material, ensuring excellent insulation properties. Its design is ideal for environments that require secure mounting solutions while enhancing safety in data and communication setups. With this plate, you can expect both durability and functional performance, making it a valuable component for your IT enclosures and racks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 7.87 in
Height10.43 in
Physical Attributes
- Color
- Black RAL 9005)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 300 mm W: 250 mm, - H: 300 mm W: 250 mm, - H: 300 mm W: 250 mm, - H: 300 mm W: 250 mm, - H: 300 mm W: 250 mm, - H: 300 mm W: 250 mm
- Mounting Location
- direct fixing on backstuds, step slide
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1848
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Plate Description
- plain
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Thickness
- 4 mm
- Height Nominal
- 265 mm
- Width Nominal
- 200 mm
- Accessory / Separate Part Category
- mounting accessory
- Package Weight(Lbs)
- 304.000 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Fixing Modescrewed on backstuds M8, by fixing element
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Materialbakelite
Permanent Permissible Load1875 kg
Product Or Component Typemounting plate
RangePanelSeT
Sustainable PackagingNo
Pep CodeENVPEP1001004EN
Height Useful265 mm
Width Real200 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8546900000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
