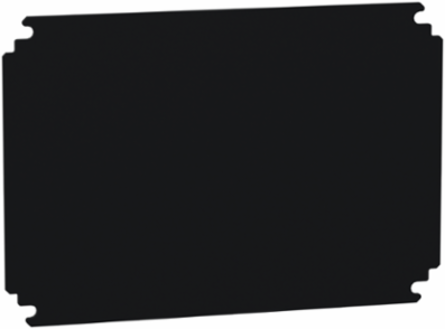

Schneider Electric NSYMB43 Insulating Mounting Plate 400mm x 300mm Bakelite, 5kg Weight

MPN: NSYMB43
PPN: SCH-NSYMB43

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$29.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric NSYMB43 Insulating Mounting Plate is an essential component for creating reliable insulation in automation and control applications. Measuring 400mm by 300mm, this Bakelite plate offers sturdy support and efficient insulation, making it ideal for use in data and communication environments as well as IT enclosures and racks. Weighing 5kg, it is designed to withstand the demands of modern installations while ensuring that sensitive components are protected and organized. Whether you're building a new system or upgrading an existing one, this mounting plate will provide the stability and insulation required for optimal performance.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain
Width	9.84 in

Height	12.8 in

Physical Attributes

Color	Black RAL 9005)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	- H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 300 mm W: 400 mm, - H: 300 mm W: 400 mm, - H: 300 mm W: 400 mm, - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 300 mm W: 400 mm, - H: 300 mm W: 400 mm
Mounting Location	direct fixing on backstuds, step slide
Local Publishable Date	2026-04-15
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Mounting Plate Description	plain
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	No

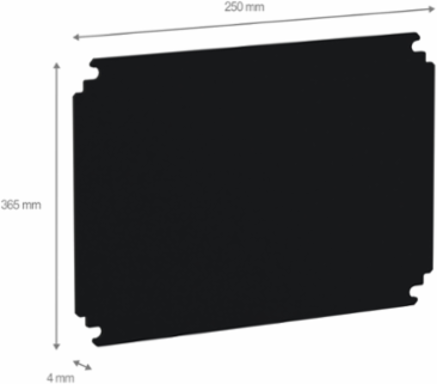

Thickness	4 mm
Height Nominal	325 mm
Width Nominal	250 mm
Accessory / Separate Part Category	mounting accessory
Package Weight(Lbs)	532.000 g
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Fixing Mode	screwed on backstuds M8, by fixing element
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Material	bakelite
Permanent Permissible Load	30 kg
Product Or Component Type	mounting plate
Range	PanelSeT
Sustainable Packaging	No
Pep Code	ENVPEP1001004EN
Height Useful	325 mm
Width Real	250 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8546900000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Environmental Disclosure	ENVPEP1001004EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
