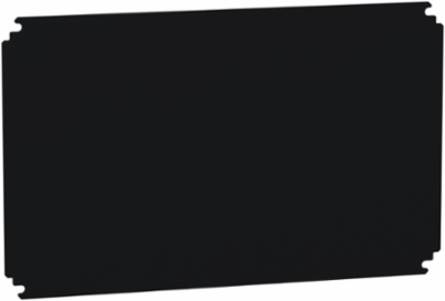

Schneider Electric NSYMB64 Insulating Mounting Plate 600mm x 400mm, 4mm Bakelite, 11kg Weight

MPN: NSYMB64
PPN: SCH-NSYMB64

$62.02

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This insulating mounting plate from Schneider Electric is expertly designed for use in automation and control applications, making it an essential component for ensuring optimal performance in IT enclosures and racks. Crafted from 4mm Bakelite, it provides robust insulation, enhancing safety and functionality within data and communication setups. Measuring 600mm x 400mm, this plate is a reliable choice for mounting equipment securely, offering both durability and stability while being lightweight at just 11kg. Whether you're assembling a new IT rack or upgrading existing systems, this mounting plate is an invaluable addition to your infrastructure.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain
Width	13.78 in

Height	22.24 in

Physical Attributes

Color	Black RAL 9005)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	- H: 600 mm W: 400 mm, - H: 600 mm W: 400 mm, - H: 600 mm W: 400 mm, - H: 600 mm W: 400 mm, - H: 600 mm W: 400 mm, - H: 600 mm W: 400 mm
Mounting Location	direct fixing on backstuds, step slide
Local Publishable Date	2026-04-15
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Mounting Plate Description	plain
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	No
Thickness	4 mm
Height Nominal	565 mm
Width Nominal	350 mm
Accessory / Separate Part Category	mounting accessory
Package Weight(Lbs)	1.138 kg
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Fixing Mode	screwed on backstuds M8, by fixing element
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Material	bakelite
Permanent Permissible Load	60 kg
Product Or Component Type	mounting plate
Range	PanelSeT
Sustainable Packaging	No
Pep Code	ENVPEP1001004EN
Height Useful	565 mm
Width Real	350 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8546900000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Environmental Disclosure	ENVPEP1001004EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
