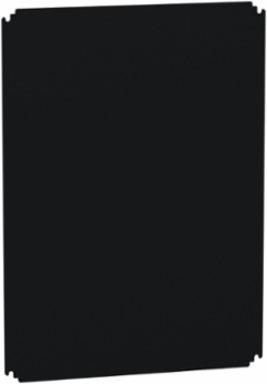

Schneider Electric NSYMB86 Bakelite Insulating Mounting Plate 800mm x 600mm, 4mm Thick, 23kg
- MPN: NSYMB86
- PPN: SCH-NSYMB86
CAD
$139.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Bakelite insulating mounting plate from Schneider Electric is an essential component for various automation and control applications. Measuring 800mm by 600mm and crafted from durable 4mm thick material, it provides a robust foundation for mounting equipment while ensuring effective insulation. Weighing 23kg, this plate is designed for stability and reliability in data and communication environments, making it ideal for IT enclosures and racks. Its solid construction supports enhanced performance and safety in diverse technological setups.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 21.65 in
Height30.12 in
Physical Attributes
- Color
- Black RAL 9005)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 800 mm W: 600 mm, - H: 800 mm W: 600 mm, - H: 800 mm W: 600 mm, - H: 800 mm W: 1200 mm, - H: 800 mm W: 1200 mm, - H: 800 mm W: 1200 mm, - H: 800 mm W: 600 mm, - H: 800 mm W: 600 mm, - H: 800 mm W: 600 mm, - H: 800 mm W: 1200 mm
- Mounting Location
- direct fixing on backstuds, step slide
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1848
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Plate Description
- plain
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Thickness
- 4 mm
- Height Nominal
- 765 mm
- Width Nominal
- 550 mm
- Accessory / Separate Part Category
- mounting accessory
- Package Weight(Lbs)
- 2.442 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Fixing Modescrewed on backstuds M8, by fixing element
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Materialbakelite
Permanent Permissible Load120 kg
Product Or Component Typemounting plate
RangePanelSeT
Sustainable PackagingNo
Pep CodeENVPEP1001004EN
Height Useful765 mm
Width Real550 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8546900000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
