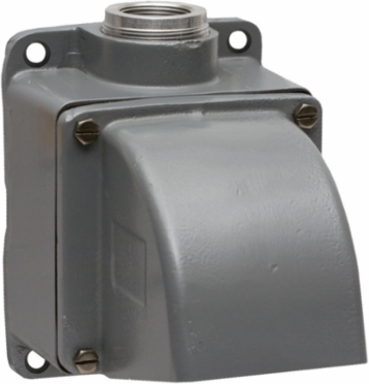

Hubbell Wiring Device-Kellems MB601002W Heavy Duty Insulgrip Pin & Sleeve Back Box, 60A/100A, 1-1/4 Inch NPT Hub
- MPN: MB601002W
- UPC: 783585011226
- PPN: HBL-MB601002W
- UNSPSC: 39121332
CAD
$559.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Accessories, Back Box, For 60A and 100A 1 1/4" NPT Hub, Angled, Mounting Screws Included, Gray Cast
Features
- Industrial Grade
- Accessories
- Back Box
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Industry Standard(s)
- UL Listed
- Application
- Metallic
- Knockouts
- 1 1/4" NPT Hub
- Special Features
- Standard Product
- Temperature Range
- Limited By Device
- Engineering Drawing 1 Display Text
- MB601002W AutoCAD Drawing
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Number Of Outlets
- Accepts 1-Device
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A200
- Construction
- Cast
- Series
- Back Boxes and Adapters Series
- BOX SIZE
- 6.300x9.600x6.700 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585011226
- Case Weight
- 31.500 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 1258.600 lb.
- NAICS Code
- 3359326103
Width6.400 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
Cable EntryThrough Hub
Number of OutletAccepts 1-Device
StandardUL Listed
TypeFour-Way Back Box
General Literature Asset 1 Display TextPulp & Paper Solutions
Display SizeFor 60 and 100 Amp Devices
Style15 Degree
Description - InvoicePS, INS, ANG BOX,60/100A,1 1/4" HUB,ALU
Harmonization Code7616995190
MSDS FlagNo
Material - Mounting HardwareMounting Screws
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack34.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585011225
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
