Hubbell

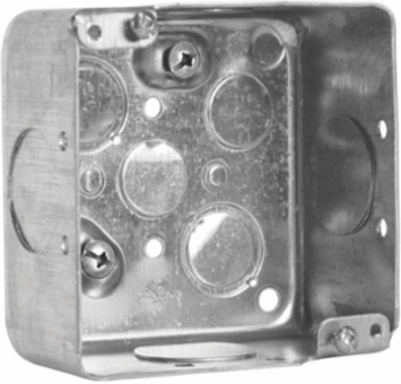

Hubbell 521711 4 In. Square Box, 2-1/8 in. Deep, 30 Cu. In., with Raised Ground Screw, 1/2, 3/4 & 1 in. KO (40-Pack)

4 In. Square Box, 2-1/8 in. Deep, 30 Cu. In., with Raised Ground Screw, 1/2, 3/4 & 1 in. KO (40-Pack)
4 In. Square Box, 2-1/8 in. Deep, 30 Cu. In., with Raised Ground Screw, 1/2, 3/4 & 1 in. KO (40-Pack)
  • MPN: 521711
  • UPC: 626463001905
  • PPN: HBL-521711
  • UNSPSC: 39121308

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$9.31/ EA

Description

4 In. Square Box, 2-1/8 in. Deep, 30 Cu. In., with Raised Ground Screw, 1/2, 3/4 & 1 in. KO (40-Pack).

Features

  • Self-tapping screws virtually eliminate stripping

Specifications

Key Specifications

Actual Depth
2.125 in
Industry Standard(s)
CSA Certified
Color
Gray
Knockouts
2 x 1/2 in, 2 x ½-3/4 in Comb ination, 4 x 1 in
Standard
CSA Certified
Type
Square Box, Box
Construction Material -Main part
Rugged Metallic Construction
Class Code
T01
Harmonization Code
7326909090
Sub Class Code
T01T010
Gangable
No
Knockouts - End
2 x 1 in
Plaster Ears
No
Wiring System
Conduit
Number of Gang(s)
2-Gang
Carton - SCC-14 Next Lower Level Sub Pack
00626463001905
Pallet Height
46.65 in
Pallet Weight
1088 lb.
Country of OriginCA
ApplicationBoxes are installed in ceiling or wall junctions. Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices.
ConstructionRugged Metallic Construction
Special FeaturesSelf-tapping screws virtually eliminate stripping
Sub BrandtradeSELECT
Bracket TypeNo Bracket
Weight0.65 lb.
Freight Class Code06168002
Image Actual Or RepresentativeA
Drawn or WeldedDrawn
Knockouts - Bottom2 x 1/2in, 2 x ½-3/4in Combination
Knockouts - Side2 x 1 in
Raised GroundYes
MaterialSteel
Base Unit of MeasureEA
Case Weight20.000 lb.
Pallet Length42 in
Pallet Width46 in

Certifications
