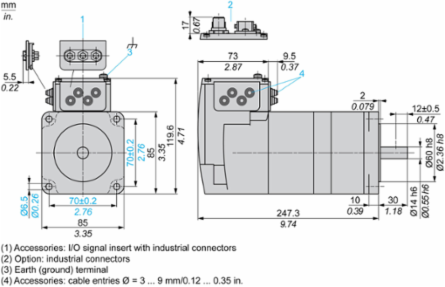

Schneider Electric ILS1F853TB1F0 integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 6 A
- MPN: ILS1F853TB1F0
- PPN: SCH-ILS1F853TB1F0
- UNSPSC: 39121021
CAD
$2901.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 6 A
Documentation & Downloads
Specifications
Key Specifications
| Weight | 5500 g |
|---|
Communications & Management Attributes
| Communication Interface | CANopen DS301, Integrated |
|---|
Physical Attributes
| Motor Flange Size | 85 mm |
|---|
| Shaft Length | 30 mm |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 36 V, 24 V |
|---|---|
| Maximum Mechanical Speed | 2000 rpm |
| Maximum Switching Current | 100 mA per output200 mA total |
| Maximum Axial Force Fa | 170 N tensile force)30 N force pressure) |
|---|---|
| Maximum Radial Force Fr | 110 N |
Important Information Attributes
| Coefficient 1 1 | -62.24 N.m/rpm, -62.24 N.m/rpm |
|---|---|
| Coefficient 2 2 | -5.664 N.m/rpm², -5.664 N.m/rpm² |
| Protection Type | overload of output voltage, short circuit of the output voltage, safe torque off |
| Voltage State 0 Guaranteed | -3...4.5 V, -3...4.5 V |
| Carbon Footprint Of The Distribution Phase A4 | 8.124204543686659, 8 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 2.910304218990387, 3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 720 kg CO2 eq., 720.3277365048187 |
| Local Publishable Date | 2026-01-12 |
| Device Type | Motion - integrated drive |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Brake Application Time | 20 ms |
| Centring Collar Diameter | 60 mm |
| Coefficient 1 0 | 68.379 N.m |
| Coefficient 2 0 | 15.083 N.m |
| Coefficient 2 3 | 0.968 N.m/rpm3 |
| Continuous Stall Torque | 4.5 N.m |
| Curve Type | semilog |
| Electrical Connection | printed circuit board connector |
| Gear Box Type | without |
| Marking | CE |
| Mounting Holes Diameter | 6.5 mm |
| Network Number Of Phases | 1 |
| Nominal Speed | 100 rpm 24 V300 rpm 36 V |
| Number Of Motor Poles | 6 |
| Number Of Mounting Holes | 4 |
| Phase | single phase |
| Product Or Component Type | motion integrated drive |
| Returnability | No |
| Second Shaft | without second shaft end |
| Shaft Diameter | 14 mm |
| Shock Resistance | 150 m/s² 1000 shocks EN/IEC 60068-2-29 |
| Software Version | v6.2.5-6 |
| Supply Voltage Limits | 18-40 V |
| Total Lifecycle Carbon Footprint | 803 kg CO2 eq. |
| Type Of Cooling | natural convection |
| Voltage 1 | 24 V |
| Voltage 1 Speed 1 Max | 112.33 rpm |
| Voltage 2 Speed 2 | 284.734 rpm |
| Voltage State 1 Guaranteed | 15...30 V |
| Database Version | 2024-01 |
| Length Total | 247.3 mm |
| Nbr. Of Units In Pkg. | 1 |
| Brake Pull In Power | 22 W |
| Functional Unit Description | To coordinate and synchronize motion control with stepper, servo or burshless DC motor with an active mode 40% of the time with a power consumption of 32W, in stand-by mode 30% of the time with a power consumption of 15W, and in off mode 30% of the time with zero power consumption, over a period of 10 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 85 |
| Coefficient 1 3 | -2.06 N.m/rpm3, -2.06 N.m/rpm3 |
|---|---|
| Holding Torque | 6 N.m holding brake, 4.5 N.m |
| Supply Voltage Description | single phase 24 V DC, single phase 36 V DC |
| Certificate Agency | cUL, UL, TÜV |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 6 kg CO2 eq., 5.846496935494403 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 65 kg CO2 eq., 65.4517910609684 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1411002EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1907 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Associated Fuse Rating | 10 A |
| Brake Release Time | 40 ms |
| Circle Diameter Of The Mounting Holes | 99 mm |
| Coefficient 1 2 | 19.385 N.m/rpm² |
| Coefficient 2 1 | 3.756 N.m/rpm |
| Compatibility Code | ILS |
| Current Consumption | 6000 mA maximum |
| Device Short Name | ILS |
| Feedback Type | index pulse |
| Holding Brake | with |
| Motor Type | 3-phase stepper motor |
| Mounting Support | flange |
| Network Type | DC |
| Nominal Torque | 4.5 N.m |
| Number Of Motor Stacks | 3 |
| Peak Stall Torque | 4.5 N.m |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium integrated drive |
| Rotor Inertia | 3.5 kg.cm² |
| Service Life In Hours | 20000 h bearing |
| Shaft End | untapped |
| Sizing Reference | ILS1_853T |
| Speed Feedback Resolution | 20000 points/turn |
| Sustainable Packaging | No |
| Transmission Rate | 50, 100, 125, 250, 500, 800 and 1000 kbauds |
| Vibration Resistance | 20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6 |
| Voltage 1 Speed 1 | 112.33 rpm |
| Voltage 2 | 36 V |
| Voltage 2 Speed 2 Max | 284.734 rpm |
| Winding Type | high speed of rotation and medium torque |
| Data Source | extrapolated product |
| Input/Output Type | 4 signals (each be used as input or output) |
| Customs Code | 8501512040 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 802.6605332639587 |
| Circularity Profile | ENVEOLI1411002EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Permissible Ambient Air Temperature Around The Device | 105 °C power amplifier110 °C motor |
| Relative Humidity | 15-85 % without condensation |
| Pep Verification Date | 2026-03-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 50-65 °C (with power derating of 2 % per °C)0-50 °C (without derating) |
| Environmental Disclosure | ENVPEP1411002EN |
| Ip Degree Of Protection | IP41 shaft bushing: conforming to EN/IEC 60034-5IP54 total except shaft bushing: conforming to EN/IEC 60034-5 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1411002EN |
| Pcr Version | PCR-4-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Phase | single phase |
|---|---|
| Range Of Product | Lexium integrated drive |
| Product Or Component Type | motion integrated drive |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|---|
| ETIM 10 | EC001851 |
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Discrete Output Voltage | 23...25 V |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Current | 10-10 mA at 24 V on/STO_A safety input3-3 mA at 24 V on/STO_B safety input, 2-2 mA at 24 V 24 V signal interface |
|---|
