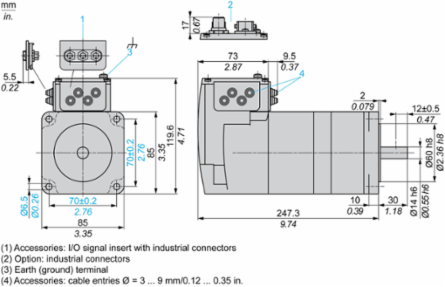

Schneider Electric ILS2K853PC1F0 Integrated Drive with Stepper Motor, 24-48V, 6 N.m Torque

MPN: ILS2K853PC1F0
PPN: SCH-ILS2K853PC1F0
UNSPSC: 39121021

$3630.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for precision in motion control applications, the integrated drive from Schneider Electric combines exceptional performance with a reliable stepper motor. Operating within a versatile voltage range of 24-48V, it delivers an impressive torque of 6 N.m, making it ideal for various automation tasks. This robust component not only simplifies installation with its all-in-one design but also enhances the efficiency of your systems, ensuring smooth and accurate motion control for a wide range of industrial processes. With its cutting-edge technology and reliable performance, this integrated drive stands out as a valuable asset for modern automation needs.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany

Weight	6000 g

Communications & Management Attributes

Communication Interface	Ethernet/IP, Integrated

Physical Attributes

Motor Flange Size	85 mm

Shaft Length	30 mm

Complementary Attributes

Us Rated Supply Voltage	24 V, 48 V
Maximum Mechanical Speed	2000 rpm
Maximum Switching Current	100 mA per output200 mA total

Maximum Axial Force Fa	170 N tensile force)30 N force pressure)
Maximum Radial Force Fr	110 N

Important Information Attributes

Coefficient 1 1	-23.108 N.m/rpm, -23.108 N.m/rpm
Coefficient 2 0	-28.571 N.m, -28.571 N.m
Holding Torque	6 N.m, 6 N.m holding brake
Supply Voltage Description	single phase 24 V DC, single phase 48 V DC
Certificate Agency	UL, TÜV, cUL
Carbon Footprint Of The End Of Life Phase C1 To C4	6 kg CO2 eq., 6.377996656902985
Carbon Footprint Of The Manufacturing Phase A1 To A3	71 kg CO2 eq., 71.40195388469282
Local Data Status	Publishable
Return Indicator	N
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1411002EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Associated Fuse Rating	16 A
Brake Release Time	40 ms
Circle Diameter Of The Mounting Holes	99 mm
Coefficient 1 2	4.495 N.m/rpm²
Coefficient 2 3	2.992 N.m/rpm3
Continuous Stall Torque	6 N.m
Curve Type	semilog
Electrical Connection	industrial connector
Gear Box Type	without
Marking	CE
Mounting Holes Diameter	6.5 mm
Network Number Of Phases	1
Nominal Speed	100 rpm 24 V200 rpm 48 V
Number Of Motor Poles	6
Number Of Mounting Holes	4
Phase	single phase
Product Or Component Type	motion integrated drive
Returnability	No
Second Shaft	without second shaft end
Shaft Diameter	14 mm
Shock Resistance	150 m/s² 1000 shocks IEC 60068-2-29
Software Version	v6.2.5-6
Supply Voltage Limits	18-55 V
Total Lifecycle Carbon Footprint	864 kg CO2 eq.
Type Of Cooling	natural convection
Voltage 1	24 V
Voltage 1 Speed 1 Max	92.963 rpm
Voltage 2 Speed 2	188.376 rpm
Voltage State 1 Guaranteed	15...30 V
Database Version	2024-01
Length Total	247.3 mm
Nbr. Of Units In Pkg.	1
Brake Pull In Power	22 W
Functional Unit Description	To coordinate and synchronize motion control with stepper, servo or burshless DC motor with an active mode 40% of the time with a power consumption of 32W, in stand-by mode 30% of the time with a power consumption of 15W, and in off mode 30% of the time with zero power consumption, over a period of 10 years.
Functional Unit Unit	unit
Recyclability Potential In %	85

Coefficient 1 3	-0.243 N.m/rpm3, -0.243 N.m/rpm3
Coefficient 2 2	-22.959 N.m/rpm², -22.959 N.m/rpm²
Protection Type	safe torque off, overload of output voltage, short circuit of the output voltage
Voltage State 0 Guaranteed	-3...4.5 V, -3...4.5 V
Carbon Footprint Of The Distribution Phase A4	8.862768593112719, 9 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	3.1748773298076953, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	774 kg CO2 eq., 774.3338576192524
Local Publishable Date	2026-01-12
Device Type	Motion - integrated drive
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Brake Application Time	20 ms
Centring Collar Diameter	60 mm
Coefficient 1 0	35.928 N.m
Coefficient 2 1	51.942 N.m/rpm
Compatibility Code	ILS
Current Consumption	5000 mA maximum continuous
Device Short Name	ILS
Feedback Type	index pulse
Holding Brake	with
Motor Type	3-phase stepper motor
Mounting Support	flange
Network Type	DC
Nominal Torque	6 N.m
Number Of Motor Stacks	3
Peak Stall Torque	6 N.m
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Lexium integrated drive
Rotor Inertia	3.5 kg.cm²
Service Life In Hours	20000 h bearing
Shaft End	untapped
Sizing Reference	ILS2_853P
Speed Feedback Resolution	20000 points/turn
Sustainable Packaging	No
Transmission Rate	125, 250, 500 kbauds
Vibration Resistance	20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Voltage 1 Speed 1	92.963 rpm
Voltage 2	48 V
Voltage 2 Speed 2 Max	188.376 rpm
Winding Type	medium speed of rotation and medium torque
Data Source	extrapolated product
Input/Output Type	4 signals (each be used as input or output)
Customs Code	8501512040
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	864.1514540837686
Circularity Profile	ENVEOLI1411002EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	105 °C power amplifier110 °C motor
Relative Humidity	15-85 % without condensation
Pep Verification Date	2026-03-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	40-55 °C (with power derating of 2 % per °C)0-40 °C (without derating)
Environmental Disclosure	ENVPEP1411002EN
Ip Degree Of Protection	IP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1411002EN
Pcr Version	PCR-4-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
