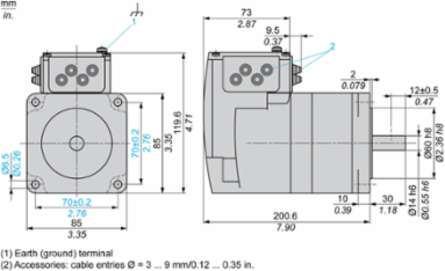

Schneider Electric ILS1U853PB1A0 Integrated Drive with 3-Phase Stepper Motor, 24-36 V, 5 A, 4.7 kg
- MPN: ILS1U853PB1A0
- PPN: SCH-ILS1U853PB1A0
CAD
$2023.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric presents an integrated drive that seamlessly combines performance and efficiency in automation and control applications. Designed to work with a 3-phase stepper motor and featuring an operational range of 24-36 V and a robust output current of 5 A, this product is ideal for various motion control requirements. Its thoughtful engineering not only ensures reliable operation but also simplifies installation and integration into existing systems, making it a valuable component for modern automation projects. With a manageable weight of 4.7 kg, this integrated drive offers versatility and ease of handling, catering to both industrial and commercial applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Communications & Management Attributes
- Communication Interface
- pulse/direction 24 V, Integrated
Physical Attributes
- Motor Flange Size
- 85 mm
Shaft Length30 mm
Complementary Attributes
- Maximum Axial Force Fa
- 170 N tensile force)30 N force pressure)
- Maximum Radial Force Fr
- 110 N
Maximum Mechanical Speed1000 rpm
Maximum Switching Current100 mA per output200 mA total
Important Information Attributes
- Coefficient 1 1
- -41.391 N.m/rpm, -41.391 N.m/rpm
- Coefficient 2 1
- -99.451 N.m/rpm, -99.451 N.m/rpm
- Protection Type
- short circuit of the output voltage, overload of output voltage, safe torque off
- Supply Voltage Description
- single phase 36 V DC, single phase 24 V DC
- Certificate Agency
- UL, cUL, TÜV
- Carbon Footprint Of The Distribution Phase [A4]
- 8.565865845243444, 9 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 3.0685189392591377, 3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 753 kg CO2 eq., 752.6233969312499
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - integrated drive
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Centring Collar Diameter
- 60 mm
- Coefficient 1 0
- 49.109 N.m
- Coefficient 2 0
- 112.839 N.m
- Compatibility Code
- ILS
- Current Consumption
- 5000 mA maximum continuous
- Device Short Name
- ILS
- Feedback Type
- index pulse
- Holding Brake
- without
- Marking
- CE
- Mounting Holes Diameter
- 6.5 mm
- Network Number Of Phases
- 1
- Nominal Speed
- 120 rpm 36 V60 rpm 24 V
- Number Of Motor Poles
- 6
- Number Of Mounting Holes
- 4
- Phase
- single phase
- Product Or Component Type
- motion integrated drive
- Returnability
- No
- Second Shaft
- without second shaft end
- Shaft Diameter
- 14 mm
- Shock Resistance
- 150 m/s² 1000 shocks IEC 60068-2-29
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Type Of Cooling
- natural convection
- Voltage 1
- 24 V
- Voltage 1 Speed 1 Max
- 60.456 rpm
- Voltage 2 Speed 2
- 163.016 rpm
- Voltage State 1 Guaranteed
- 15...30 V
- Winding Type
- medium speed of rotation and medium torque
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To coordinate and synchronize motion control with stepper, servo or burshless DC motor with an active mode 40% of the time with a power consumption of 32W, in stand-by mode 30% of the time with a power consumption of 15W, and in off mode 30% of the time with zero power consumption, over a period of 10 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Germany, DE
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Germany, DE
- Recyclability Potential In %
- 85
- Input/Output Type
- 4 signals (each be used as input or output)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8501314000
Coefficient 1 3-1.044 N.m/rpm3, -1.044 N.m/rpm3
Coefficient 2 3-3.06 N.m/rpm3, -3.06 N.m/rpm3
Speed Feedback Resolution1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°, 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
Voltage State 0 Guaranteed-3...4.5 V, -3...4.5 V
[Us] Rated Supply Voltage36 V, 24 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]6 kg CO2 eq., 6.164333768896736
Carbon Footprint Of The Manufacturing Phase [A1 To A3]69 kg CO2 eq., 69.0099884295556
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1411002EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1907
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Associated Fuse Rating10 A
Circle Diameter Of The Mounting Holes99 mm
Coefficient 1 211.511 N.m/rpm²
Coefficient 2 229.895 N.m/rpm²
Continuous Stall Torque6 N.m
Curve Typesemilog
Electrical Connectionprinted circuit board connector
Gear Box Typewithout
Holding Torque6 N.m
Motor Type3-phase stepper motor
Mounting Supportflange
Network TypeDC
Nominal Torque6 N.m
Number Of Motor Stacks3
Peak Stall Torque6 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium integrated drive
Rotor Inertia3.3 kg.cm²
Service Life In Hours20000 h bearing
Shaft Enduntapped
Sizing ReferenceILS1_853P
Supply Voltage Limits18-40 V
Total Lifecycle Carbon Footprint839 kg CO2 eq.
Vibration Resistance20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Voltage 1 Speed 160.456 rpm
Voltage 236 V
Voltage 2 Speed 2 Max163.016 rpm
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1411002EN
Pep Verification Date2026-03-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Length Total200.6 mm
Accuracy Error [Angular]0.1 °
Package Weight(Lbs)5.799 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 839.4321039142048
- Circularity Profile
- ENVEOLI1411002EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- 105 °C power amplifier110 °C motor
- Relative Humidity
- 15-85 % without condensation
- Pep Verification Date
- 2026-03-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation50-65 °C (with power derating of 2 % per °C)0-50 °C (without derating)
Environmental DisclosureENVPEP1411002EN
Ip Degree Of ProtectionIP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1411002EN
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium integrated drive
Product Or Component Typemotion integrated drive
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Discrete Output Voltage
- 23...25 V
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 10-10 mA at 24 V safety input
