Schneider Electric ILS2K852PB1F0 Integrated Drive with Stepper Motor, 24-48 V, 5 A, 180-360 RPM, 5.4 kg
Schneider Electric ILS2K852PB1F0 Integrated Drive with Stepper Motor, 24-48 V, 5 A, 180-360 RPM, 5.4 kg
- MPN: ILS2K852PB1F0
- PPN: SCH-ILS2K852PB1F0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3112.55/ EA
Description
The Integrated Drive with Stepper Motor from Schneider Electric is a robust solution designed for precise motion control in various automation applications. Operating at a voltage range of 24-48 V and delivering a maximum current of 5 A, this drive is capable of achieving speeds between 180 to 360 RPM, making it well-suited for tasks requiring both speed and accuracy. With its reliable performance and integrated design, this product streamlines the setup process in motion control systems while providing the durability and efficiency necessary for modern industrial environments.
Specifications
- Voltage
- 24 V, 48 V
- Nominal Torque
- 4 N.m (35.40 lbf.in)
- Continuous Stall Torque
- 4 N.m (35.40 lbf.in)
- Current Consumption
- 5000 mA maximum continuous (5 A)
- Transmission Rate
- 125, 250, 500 kbauds
- Maximum Mechanical Speed
- 3000 rpm
- Accuracy Error
- +/- 6 arc min
- Maximum Axial Force
- 170 N tensile, 30 N pressure
- Brake Release Time
- 40 ms
- Type of Cooling
- Natural convection

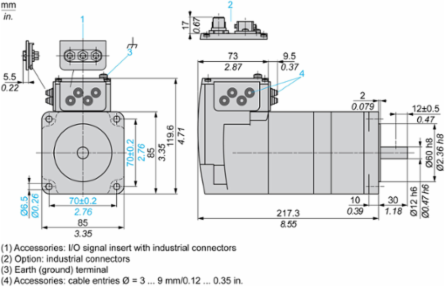

- Motor Flange Size
- 85 mm (3.35 in)
- Number of Motor Stacks
- 2
- Centring Collar Depth
- 2 mm (0.08 in)
- Mounting Holes Diameter
- 6.5 mm (0.26 in)
- Shaft End
- Untapped
- Shaft Length
- 30 mm (1.18 in)
- Motor Type
- 3-phase stepper motor
- Input/Output Type
- 4 signals, each can be used as input or output
- Voltage State 1 Guaranteed
- 15 to 30 V
- Discrete Output Voltage
- 23 to 25 V
- Protection Type
- Short circuit of output voltage, Safe torque off, Overload of output voltage
- Service Life
- 20000 h bearing
- Product Certifications
- UL, TÜV, cUL
- Ambient Air Temperature for Storage
- -25 to 70 °C
- Relative Humidity
- 15 to 85 % without condensation
- Shock Resistance
- 150 m/s², 1000 shocks IEC 60068-2-29
Nominal Speed180 rpm at 24 V, 360 rpm at 48 V
Holding Torque6 N.m (53.10 lbf.in) with holding brake, 4 N.m without
Peak Stall Torque4 N.m (35.40 lbf.in)
Associated Fuse Rating16 A
Supply Voltage Limits18-55 V
Speed Feedback Resolution20000 points/turn
Maximum Radial Force100 N
Brake Pull-In Power22 W
Brake Application Time20 ms
Mounting SupportFlange
Number of Motor Poles6
Centring Collar Diameter60 mm (2.36 in)
Number of Mounting Holes4
Circle Diameter Of The Mounting Holes99 mm (3.90 in)
Shaft Diameter12 mm (0.47 in)
Net Weight5.4 kg (11.90 lb)
PhaseSingle phase
Voltage State 0 Guaranteed-3 to 4.5 V
Discrete Input Current10 mA at 24 V safety input, 2 mA at 24 V signal interface
Maximum Switching Current100 mA per output, 200 mA total
Rotor Inertia2.4 kg.cm²
StandardsIEC 50347, IEC 60072-1, EN 61800-3, IEC 61800-3 Ed 2, IEC 50178, EN 61800-3 second environment
Ambient Air Temperature for Operation0 to 40 °C without derating, 40 to 55 °C with power derating
Operating AltitudeUp to 1000 m without derating
Vibration Resistance20 m/s², 10 to 500 Hz, 10 cycles IEC 60068-2-6
IP Degree of ProtectionIP41 shaft bushing, IP54 total except shaft bushing (IEC 60034-5)
