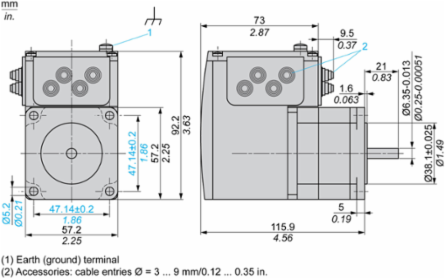

Schneider Electric ILS1V572PB1A0 Integrated Drive with 3-Phase Stepper Motor, 24-36V, 3.5A, 3000 RPM

MPN: ILS1V572PB1A0
PPN: SCH-ILS1V572PB1A0
UNSPSC: 26111516

$1617.18

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This integrated drive from Schneider Electric combines precision engineering with the capabilities of a 3-phase stepper motor, making it an essential component for advanced automation and control applications. Operating at a voltage range of 24-36V and a current of 3.5A, the drive is capable of reaching impressive speeds of up to 3000 RPM, facilitating smooth and efficient motion control in various settings. With its seamless integration, this drive is designed to enhance performance in both industrial and commercial environments, ensuring reliability and responsiveness in every application.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany

Weight	1746 g

Communications & Management Attributes

Communication Interface	pulse/direction 5 V without RS422, Integrated

Physical Attributes

Motor Flange Size	57 mm

Shaft Length	21 mm

Complementary Attributes

Us Rated Supply Voltage	24 V, 36 V
Maximum Mechanical Speed	3000 rpm
Maximum Switching Current	100 mA per output200 mA total

Maximum Axial Force Fa	100 N tensile force)8.4 N force pressure)
Maximum Radial Force Fr	24 N

Important Information Attributes

Coefficient 1 1	-24.392 N.m/rpm, -24.392 N.m/rpm
Coefficient 2 0	-83.153 N.m, -83.153 N.m
Protection Type	short circuit of the output voltage, safe torque off, overload of output voltage
Supply Voltage Description	single phase 24 V DC, single phase 36 V DC
Certificate Agency	TÜV, cUL, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 1.8559970271587687
Carbon Footprint Of The Manufacturing Phase A1 To A3	21 kg CO2 eq., 20.77796858044561
Local Data Status	Publishable
Return Indicator	N
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1411002EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1907
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Associated Fuse Rating	10 A
Circle Diameter Of The Mounting Holes	66.6 mm
Coefficient 1 2	7.183 N.m/rpm²
Coefficient 2 3	2.852 N.m/rpm3
Continuous Stall Torque	0.9 N.m
Curve Type	semilog
Electrical Connection	printed circuit board connector
Gear Box Type	without
Holding Torque	1.02 N.m
Motor Type	3-phase stepper motor
Mounting Support	flange
Network Type	DC
Nominal Torque	0.9 N.m
Number Of Motor Stacks	2
Peak Stall Torque	0.9 N.m
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Lexium integrated drive
Rotor Inertia	0.22 kg.cm²
Service Life In Hours	20000 h bearing
Shaft End	untapped
Sizing Reference	ILS1_572P
Supply Voltage Limits	18-40 V
Total Lifecycle Carbon Footprint	341 kg CO2 eq.
Vibration Resistance	20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Voltage 1 Speed 1	309.933 rpm
Voltage 2	36 V
Voltage 2 Speed 2 Max	519.145 rpm
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Length Total	115.9 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Coefficient 1 3	-0.719 N.m/rpm3, -0.719 N.m/rpm3
Coefficient 2 2	-26.823 N.m/rpm², -26.823 N.m/rpm²
Speed Feedback Resolution	1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°, 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
Voltage State 0 Guaranteed	-3...4.5 V, -3...4.5 V
Carbon Footprint Of The Distribution Phase A4	2.579065660595801, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.9238893029740394, 0.9 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	315 kg CO2 eq., 314.8497791776512
Local Publishable Date	2026-01-12
Device Type	Motion - integrated drive
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Centring Collar Diameter	38.1 mm
Coefficient 1 0	28.202 N.m
Coefficient 2 1	82.762 N.m/rpm
Compatibility Code	ILS
Current Consumption	3500 mA maximum continuous
Device Short Name	ILS
Feedback Type	index pulse
Holding Brake	without
Marking	CE
Mounting Holes Diameter	5.2 mm
Network Number Of Phases	1
Nominal Speed	300 rpm 24 V600 rpm 36 V
Number Of Motor Poles	6
Number Of Mounting Holes	4
Phase	single phase
Product Or Component Type	motion integrated drive
Returnability	No
Second Shaft	without second shaft end
Shaft Diameter	6.35 mm
Shock Resistance	150 m/s² 1000 shocks IEC 60068-2-29
Software Version	v6.2.5-6
Sustainable Packaging	No
Type Of Cooling	natural convection
Voltage 1	24 V
Voltage 1 Speed 1 Max	309.933 rpm
Voltage 2 Speed 2	519.145 rpm
Voltage State 1 Guaranteed	15...30 V
Winding Type	medium speed of rotation and medium torque
Data Source	extrapolated product
Input/Output Type	4 signals (each be used as input or output)
Customs Code	8501312000
Functional Unit Description	To coordinate and synchronize motion control with stepper, servo or burshless DC motor with an active mode 40% of the time with a power consumption of 32W, in stand-by mode 30% of the time with a power consumption of 15W, and in off mode 30% of the time with zero power consumption, over a period of 10 years.
Functional Unit Unit	unit
Recyclability Potential In %	85

Environment Attributes Main

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	340.98669974882546
Circularity Profile	ENVEOLI1411002EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	105 °C power amplifier110 °C motor
Relative Humidity	15-85 % without condensation
Pep Verification Date	2026-03-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	50-65 °C (with power derating of 2 % per °C)0-50 °C (without derating)
Environmental Disclosure	ENVPEP1411002EN
Ip Degree Of Protection	IP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1411002EN
Pcr Version	PCR-4-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
