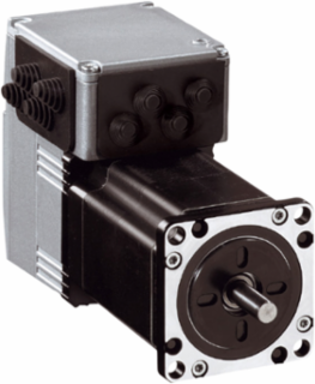

Schneider Electric ILS2T571PC1A0 Integrated Drive with Stepper Motor, 24-48V, Modbus TCP, 3.5A, 1.3kg
- MPN: ILS2T571PC1A0
- PPN: SCH-ILS2T571PC1A0
CAD
$2410.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This integrated drive from Schneider Electric merges efficiency and advanced control technology, making it an ideal solution for various automation and motion control applications. Capable of operating within a voltage range of 24 to 48V and offering a robust 3.5A output, it ensures consistent performance across a range of tasks. Designed for seamless connectivity, it features Modbus TCP for easy integration into existing systems, allowing for enhanced communication and control. With its built-in stepper motor, this drive not only simplifies installation but also optimizes performance, making it an excellent addition to any automation setup.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24 V, 48 V
- Nominal Speed
- 1000 rpm (24 V), 2000 rpm (48 V)
- Holding Torque
- 0.45 N.m
- Maximum Radial Force
- 24 N
- Rotor Inertia
- 0.1 kg.cm6
- Associated Fuse Rating
- 16 A
- Number of Motor Poles
- 6
- Network Number Of Phases
- single phase
- Winding Type
- medium speed of rotation and medium torque
- Shaft Length
- 21 mm
- Motor Flange Size
- 57 mm (2.24 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 66.6 mm (2.62 in)
- Net Weight
- 1.3 kg (2.87 lb)
- Transmission Rate
- 10, 100 Mbits
- Accuracy Error
- +/- 6 arc min
- Feedback Type
- index pulse
- Service Life
- 20000 h bearing
- Shock Resistance
- 150 m/s6, 1000 shocks
- Standards
- EN/IEC 61800-3, EN 50347, EN/IEC 50178, IEC 60072-1
- Ambient Air Temperature for Operation
- 0-40 6C without derating, 40-55 6C with derating
- Operating Altitude
- <= 1000 m without derating
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1411002EN
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (out of EU RoHS scope)
Current3.5 A maximum continuous
Nominal Torque0.45 N.m (0.45 N.m)
Maximum Mechanical Speed3000 rpm
Maximum Axial Force100 N tensile, 8.4 N pressure
Supply Voltage Limits18-55 V
Motor Type3-phase stepper motor
Number Of Motor Stacks1
Gear Box Typewithout
Shaft Diameter6.35 mm
Shaft Enduntapped
Length101.9 mm (4.01 in)
Mounting Holes Diameter5.2 mm (0.20 in)
Mounting Supportflange
Communication InterfaceModbus TCP, integrated
Protection TypeSafe torque off, Short circuit, Overload output voltage
Speed Feedback Resolution20000 points/turn
Type of Coolingnatural convection
Vibration Resistance20 m/s6 10-500 Hz, 10 cycles
IP Degree of ProtectionIP54 total, IP41 shaft bushing
Product CertificationscUL, UL, T6V
Ambient Air Temperature for Storage-25 to 70 6C
Relative Humidity15-85% without condensation
Sustainable Offer StatusGreen Premium product
Environmental DisclosureENVPEP1411002EN
Rohs Exemption InformationYes
WeeeMust be disposed per EU waste collection
