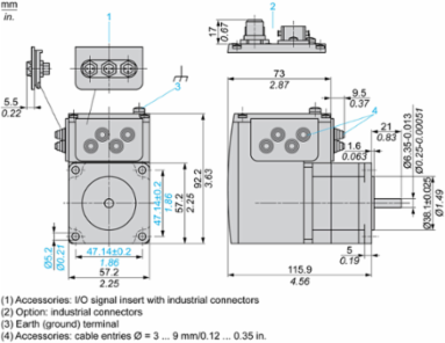

Schneider Electric ILS1R572PB1A0 Integrated Stepper Drive 24-36V, 3.5A, 2-Phase, 1.02 N.m Torque
- MPN: ILS1R572PB1A0
- PPN: SCH-ILS1R572PB1A0
CAD
$1617.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Integrated Stepper Drive from Schneider Electric is engineered for efficiency and versatility in motion control applications. Operating within a voltage range of 24 to 36V and providing a robust 3.5A current, it excels in delivering reliable performance across various automation systems. With a torque capability of 1.02 N.m and a two-phase design, this drive ensures precise and accurate movement, making it an ideal choice for demanding tasks in automation and control environments. Its integration into motion control systems enhances overall functionality while simplifying setup and operation, making it a standout solution for industrial applications.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24 V, 36 V
- Holding Torque
- 1.02 N.m (9.03 lbf.in)
- Current Consumption
- 3500 mA maximum
- Maximum Radial Force
- 24 N
- Number of Motor Poles
- 6
- Supply Voltage Limits
- 18-40 V
- Motor Type
- 3-phase stepper motor
- Length
- 115.9 mm (4.56 in)
- Shaft Diameter
- 6.35 mm (0.25 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 66.6 mm (2.62 in)
- Net Weight
- 1.6 kg (3.53 lb)
- Accuracy Error
- +/- 6 arc min
- Type of Cooling
- Natural convection
- Ambient Air Temperature for Operation
- 0-50 °C without derating, 50-65 °C with 2%/°C power derating
- Relative Humidity
- 15-85% without condensation
- Shock Resistance
- 150 m/s², 1000 shocks (EN/IEC 60068-2-29)
- Standards
- EN/IEC 61800-3, EN/IEC 50178, IEC 61800-3 Ed 2, EN 50347, IEC 60072-1
- PVC Free
- Yes
- Feedback Type
- Index pulse
Nominal Speed300 rpm (24 V), 600 rpm (36 V)
Nominal Torque0.9 N.m (7.97 lbf.in)
Maximum Mechanical Speed3000 rpm
Maximum Axial Force100 N tensile, 8.4 N pressure
Number Of Motor Stacks2
PhaseSingle phase
Protection TypeSafe torque off, Overload of output voltage, Short circuit of output voltage
Motor Flange Size57 mm (2.24 in)
Shaft Length21 mm (0.83 in)
Mounting Holes Diameter5.2 mm (0.20 in)
Mounting SupportFlange
Rotor Inertia0.22 kg.cm²
Speed Feedback Resolution20000 points/turn
IP Degree of ProtectionIP41 shaft bushing, IP54 total except shaft bushing (EN/IEC 60034-5)
Operating Altitude<= 1000 m without derating
Vibration Resistance20 m/s² (10-500 Hz), 10 cycles (EN/IEC 60068-2-6)
Product CertificationscUL, UL, TÜV
RoHS CompliancePro-active compliance (product out of EU RoHS legal scope)
Warranty18 months
