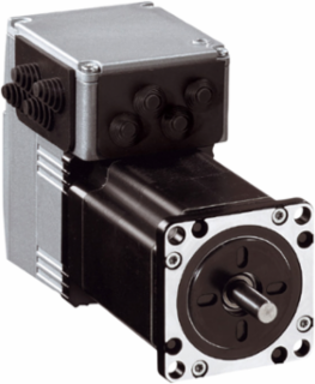

Schneider Electric ILS2K571PC1A0 Integrated Drive with Stepper Motor, 24-48 V, 3.5 A, EtherNet/IP
Schneider Electric ILS2K571PC1A0 Integrated Drive with Stepper Motor, 24-48 V, 3.5 A, EtherNet/IP
- MPN: ILS2K571PC1A0
- PPN: SCH-ILS2K571PC1A0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2245.69/ EA
Description
The integrated drive from Schneider Electric provides a robust solution for motion control applications, seamlessly combining a stepper motor with advanced EtherNet/IP connectivity. Operating within a voltage range of 24 to 48 V and capable of delivering up to 3.5 A, this drive is engineered for efficiency and precision in automation tasks. Its design is particularly beneficial for users looking to optimize performance in complex control systems, making it an ideal choice for various industrial environments. The ILS2K571PC1A0 is a testament to Schneider Electric's commitment to innovation in automation and control technology.
Specifications
- Voltage
- 24-48 V
- Nominal Speed
- 1000 rpm at 24 V, 2000 rpm at 48 V
- Holding Torque
- 0.45 N.m (3.98 lbf.in)
- Continuous Stall Torque
- 0.45 N.m (3.98 lbf.in)
- Maximum Radial Force Fr
- 24 N
- Service Life
- 20000 h bearing
- Shaft Diameter
- 6.35 mm (0.25 in)
- Motor Flange Size
- 57 mm (2.24 in)
- Mounting Holes Diameter
- 5.2 mm (0.20 in)
- Mounting Support
- Flange
- Material
- Medium speed winding type
- Number of Motor Poles
- 6
- Feedback Type
- Index pulse
- Supply Voltage Limits
- 18-55 V
- Input/Output Type
- 4 signals (each usable as input or output)
- Voltage State 1 Guaranteed
- 15 to 30 V
- Discrete Output Voltage
- 23 to 25 V
- Type of Cooling
- Natural convection
- Product Certifications
- cUL, T c, UL
- Ambient Air Temperature for Operation
- 0 to 40 0C without derating, 40 to 55 0C with power derating of 2% per 0C
- Ambient Air Temperature for Storage
- -25 to 70 0C
- Relative Humidity
- 15 to 85% without condensation
- Shock Resistance
- 150 m/s² 1000 shocks IEC 60068-2-29
- Sustainable Offer Status
- Green Premium product
- PVC Free
- Yes
Current3.5 A maximum continuous
Nominal Torque0.45 N.m (3.98 lbf.in)
Peak Stall Torque0.45 N.m (3.98 lbf.in)
Maximum Mechanical Speed3000 rpm
Maximum Axial Force Fa100 N tensile force, 8.4 N force pressure
Length101.9 mm (4.01 in)
Shaft Length21 mm (0.83 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes66.6 mm (2.62 in)
Weight1.3 kg (2.87 lb)
Motor Type3-phase stepper motor
PhaseSingle phase
Protection TypeOverload of output voltage, Short circuit of output voltage, Safe torque off
Associated Fuse Rating16 A
Voltage State 0 Guaranteed-3 to 4.5 V
Discrete Input Current10 mA at 24 V safety input, 2 mA at 24 V signal interface
Maximum Switching Current100 mA per output, 200 mA total
MarkingCE
StandardsEN 61800-3, IEC 50178, IEC 50347, IEC 61800-3 Ed 2, IEC 60072-1
Permissible Ambient Air Temperature Around the Device105 0C power amplifier, 110 0C motor
Operating Altitude<= 1000 m without derating
Vibration Resistance20 m/s² (10 to 500 Hz) 10 cycles IEC 60068-2-6
IP Degree of ProtectionIP41 shaft bushing, IP54 total except shaft bushing IEC 60034-5
Mercury FreeYes
Warranty18 months
