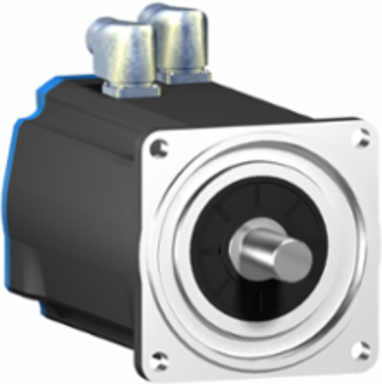

Schneider Electric BSH1404P31A2P Lexium 32 Servo Motor 32.1 N·m 3000 RPM 140 mm Keyed Shaft IP65
- MPN: BSH1404P31A2P
- PPN: SCH-BSH1404P31A2P
CAD
$3883.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This servo motor from Schneider Electric exemplifies precision and reliability, making it a crucial component for automation and control applications. With a torque rating of 32.1 N·m and a maximum speed of 3000 RPM, it delivers robust performance for various motion control tasks. The 140 mm keyed shaft ensures secure coupling with other machinery, while its IP65 rating offers protection against dust and water, ensuring durability in demanding environments. Whether you're in a manufacturing setting or implementing advanced automation systems, this Lexium 32 Servo Motor stands out for its efficiency and dependable operation.
Documentation & Downloads
Specifications
Additional
- Voltage
- 480 V
- Continuous Stall Torque
- 32.1 to 33.4 N.m
- Nominal Speed
- 2500 to 3000 rpm
- Nominal Output Power
- 3400 to 5000 W
- Torque Constant
- 1.57 N.m/A 120 0C
- Rotor Inertia
- 23.7 kg.cmb2
- Stator Inductance
- 3.9 mH (20 b0C)
- Maximum Radial Force Fr
- 1840 N at 3000 rpm
- Network Number Of Phases
- Three phase
- Net Weight
- 26 kg (57.32 lb)
- Shaft Length
- 50 mm (1.97 in)
- Motor Flange Size
- 140 mm (5.51 in)
- Shaft End
- Keyed
- Speed Feedback Resolution
- 131072 points/turn
- Mounting Holes Diameter
- 11 mm
- Centring Collar Diameter
- 130 mm
- Circle Diameter Of The Mounting Holes
- 165 mm
- Electrical Connection
- Rotatable right-angled connectors
- Range Compatibility
- Lexium 32, Lexium 05
- Pvc Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information
- Yes
- Weee
- Must be disposed in EU following waste collection
- Warranty
- 18 months
Maximum Current Irms72 A to 95.6 A
Peak Stall Torque63.09 to 103.6 N.m
Maximum Speed4000 rpm
Continuous Stall Current21.3 A
Switching Frequency8 kHz
Stator Resistance0.28 Ohm (20 b0C)
Number Of Motor Poles10
Maximum Axial Force Fa0.2 x Radial Force
Length382.5 mm (15.06 in)
Shaft Diameter24 mm (0.94 in)
Key Width40 mm (1.57 in)
Mounting SupportInternational standard flange
Feedback TypeSingle turn SinCos Hiperface
Type Of CoolingNatural convection
Number Of Mounting Holes4
Centring Collar Depth3.5 mm
Holding BrakeWithout
Product Or Component TypeServo motor
Product CompatibilityLXM05AD57N4, LXM05BD57N4, LXM05CD57N4, LXM32.D72N4
Mercury FreeYes
China Rohs RegulationX
Environmental DisclosureENVPEP111049EN
Sustainable Offer StatusGreen Premium product
Device Short NameBSH
