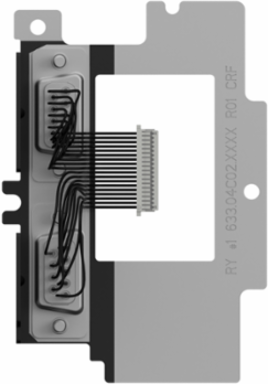

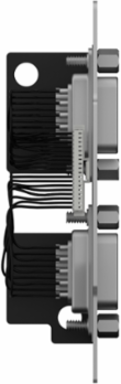

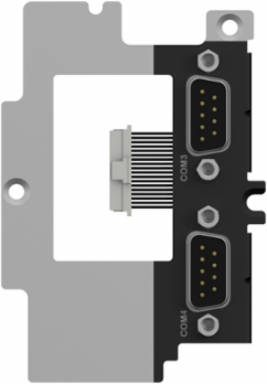

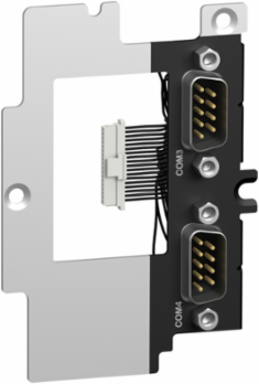

Schneider Electric HMIYP6M2R42P2 Expansion option, Harmony P6, IPC, 2 x RS422, 485 isolated
- MPN: HMIYP6M2R42P2
- PPN: SCH-HMIYP6M2R42P2
CAD
$498.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is a dedicated interface module is used with Box PCs of Schneider Electric's Harmony P6 range. It is an isolated RS-422/485 interface with a 2x D-Sub 9-pin plug connector. It weighs 0.15Kg. This product is compatible with all Harmony P6 Basic Box PCs. The Harmony P6 online Configurator with an enlarged line-up offers many possibilities and eases the design of complete automation architectures and solutions. Harmony iPC runs at the Edge Control level of EcoStruxure and improves productivity and performance with data management functionality and flexibility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Japan, United States
Complementary Attributes
- Integrated Connection Type
- M.2 1 plug SUB-D 9 RS422/RS485 2400...115200 bps
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Product Or Component Type
- serial line interface
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Accessory / Separate Part Destination
- Harmony P6
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
Local Publishable Date2026-01-12
Stocking FlagN
ServiceabilityNo
Weee ApplicabilityComponent
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2532
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony P6
Sustainable PackagingNo
Accessory / Separate Part Categoryconnection accessory
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)150 g
Take-backNo
Customs Code8517620090
Environment Attributes Main
- Ambient Air Temperature For Storage
- -20-60 °C, -20-60 °C
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Silicon Free
- No
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-55 °C
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non condensing
General Attributes
- Product Or Component Type
- serial line interface
Range Of ProductHarmony P6
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
