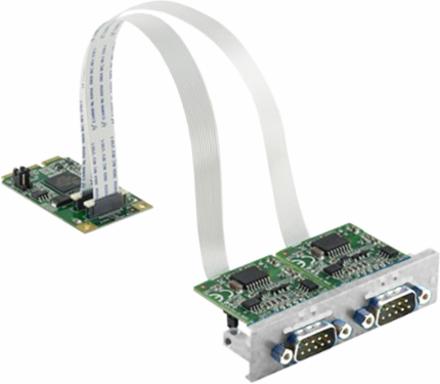

Schneider Electric HMIYMINSL22321 Serial line interface, Harmony iPC, mini PCIe 2xRS232 Isolated for
- MPN: HMIYMINSL22321
- PPN: SCH-HMIYMINSL22321
CAD
$840.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Serial line interface, Harmony iPC, mini PCIe 2xRS232 Isolated for
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, United Kingdom, Taiwan |
|---|
| Depth | 38.2 mm |
|---|
Complementary Attributes
| Integrated Connection Type | Mini PCIe full-size 2 female SUB-D 9 RS232 50 bit/s...230.4 kbit/s 2 m |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2527 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony iPC |
| Sustainable Packaging | No |
| Height Nominal | 81 mm |
| Accessory / Separate Part Category | connection accessory |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 123.000 g |
| Take-back | No |
| Customs Code | 8473301180 |
| Local Publishable Date | 2026-01-12 |
|---|---|
| Stocking Flag | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Or Component Type | serial line interface |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 76 mm |
| Accessory / Separate Part Destination | Harmony iPC |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Silicon Free | No |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -20-60 °C-20-60 °C |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % non-condensing |
General Attributes
| Product Or Component Type | serial line interface |
|---|
| Range Of Product | Harmony iPC |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
Input Attributes
| Input Current | 400 mA 3.3 V DC |
|---|
