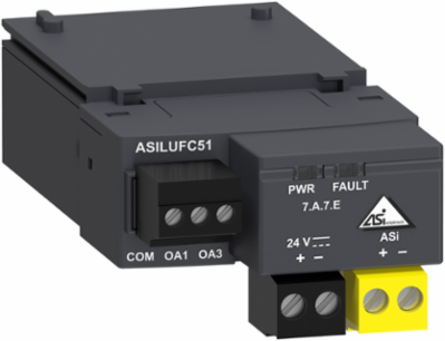

Schneider Electric ASILUFC51 TeSys U Communication Module, Plug-in, Front Side, IP20, 200 mA, 62 Slaves
- MPN: ASILUFC51
- PPN: SCH-ASILUFC51
CAD
$400.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U communication module for AS-Interface bus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a yellow 2-point plug-in connector for connection to an AS-I network (limited to 62 slaves), a black 2-point plug-in connector for connection to an external 24V DC supply. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 2 LEDs indicating 24V voltage presence (PWR) and communication status (FAULT). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France |
|---|
Important Information Attributes
| Tightening Torque | input: 0.5-0.6 N.m3.5 mm, output: 0.2-0.25 N.m2.5 mm |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2025 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Addressing | 62 slaves |
| Connection Pitch | 3.81 mm output5.08 mm input |
| Device Application | communication |
| Energy Efficiency Optimized | False |
| Local Signalling | 2 LEDs front panel |
| Mounting Mode | plug-in |
| Product Or Component Type | communication module |
| Range Of Product | TeSys U |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 59.0 g |
| Warranty (In Months) | 18 |
| Connections - Terminals | input screw clamp terminals 2 0.2-1 mm²rigid without cable endinput screw clamp terminals 2 0.25-1 mm²flexible with cable endoutput screw clamp terminals 1 0.14-1 mm²rigid without cable endoutput screw clamp terminals 1 0.25-0.5 mm²flexible with cable endoutput screw clamp terminals 1 0.25-1 mm²flexible with cable endoutput screw clamp terminals 2 0.14-0.5 mm²rigid without cable endoutput screw clamp terminals 2 0.14-0.75 mm²flexible without cable endoutput screw clamp terminals 2 0.25-0.34 mm²flexible with cable endoutput screw clamp terminals 2 0.5-0.5 mm²flexible with cable end, input screw clamp terminals 1 0.2-1.5 mm²flexible without cable end, input screw clamp terminals 1 0.2-1.5 mm²rigid without cable endinput screw clamp terminals 1 0.25-1.5 mm²flexible with cable end, input screw clamp terminals 2 0.2-1 mm²flexible without cable end, input screw clamp terminals 2 0.5-1 mm²flexible with cable endoutput screw clamp terminals 1 0.14-1 mm²flexible without cable end |
|---|---|
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Bus Type | AS-Interface |
| Current Consumption | 200 mA 24 V output25 mA normal operation30 mA fault condition |
| Device Short Name | ASILUL |
| Function Available | communication module |
| Mounting Location | front side |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | TeSys |
| Return Time | 10 ms |
| Sustainable Packaging | Yes |
| Certificate Agency | AS-Interface V2.1 No 52303 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Product Compatibility | LUCB, LUCM, LUCD, LUCA, LUCL, LUCC |
| Halogene Performance | Halogen free plastic parts product |
| Mercury Free | Yes |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
General Attributes
| Product Or Component Type | communication module |
|---|
| Range Of Product | TeSys U |
|---|
ETIM
| ETIM 8 | EC001604 |
|---|
| ETIM 9 | EC001604 |
|---|
Output Attributes
| Number Of Outputs | 2 dedicated to starter-controller coil operation |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
