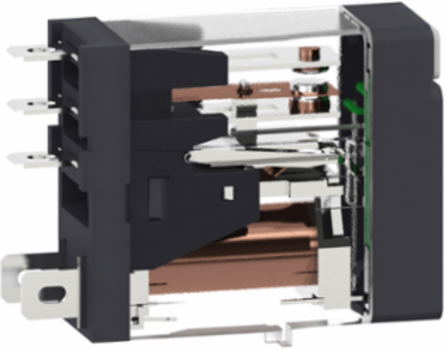

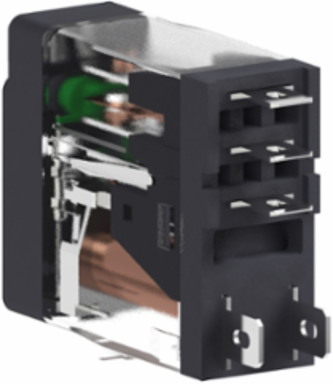

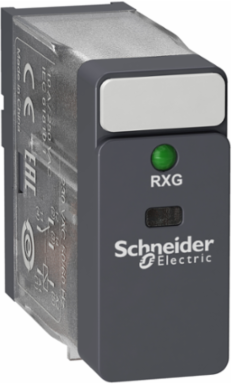

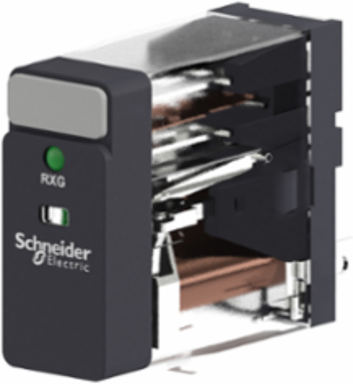

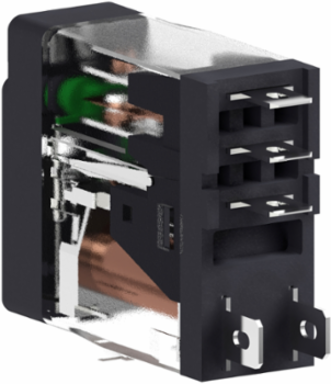

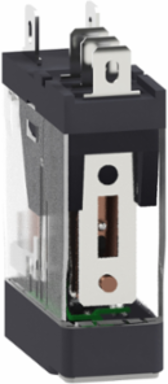

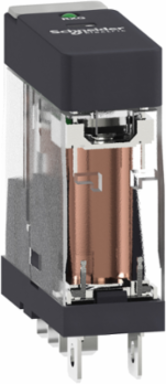

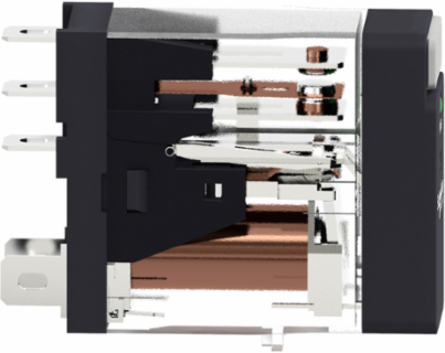

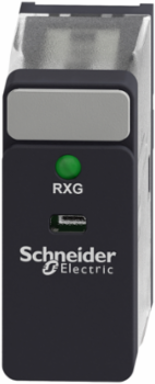

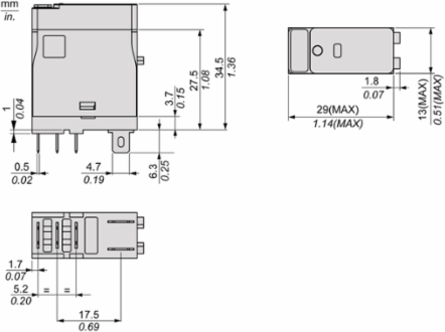

Schneider Electric RXG13B7 interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, 24V AC
Schneider Electric RXG13B7 interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, 24V AC
- MPN: RXG13B7
- PPN: SCH-RXG13B7
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$15.05/ EA
Description
This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Specifications
Environment
- Product Certifications
- EAC || CSA || UL || CE || DNV-GL
- Standards
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- Relative Humidity
- 10-85 %
- Ip Degree Of Protection
- IP40
Ambient Air Temperature For Operation-40-70 °C
Vibration Resistance3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Ambient Air Temperature For Storage-40-85 °C
Specifications
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- interface relay
- Local Signalling
- flag
- [Ithe] Conventional Enclosed Thermal Current
- 10 A -40-55 °C
Product Or Component Typeplug-in relay
Contacts Type And Composition1 C/O
Device Short NameRXG
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Utilisation Coefficient
- 20 %
- Safety Reliability Data
- B10d = 100000
- Average Consumption
- 0.82 VA 60 Hz
- Operating Rate
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Protection Category
- RT I
- Contacts Material
- silver alloy (AgSnO2In2O3)
- Shock Resistance
- 20 gn in operation || 100 gn not in operation
- Status Led
- with
- Colour Of Cover
- standard
- Device Presentation
- complete product
- [Ui] Rated Insulation Voltage
- 250 V IEC || 300 V CSA || 300 V UL
- Mechanical Durability
- 10000000 cycles
- Control Circuit Voltage Limits
- 0.8...1.1 Uc AC
- Overvoltage Category
- III
- Drop-Out Voltage Threshold
- >= 0.3 Uc AC
Maximum Switching Capacity2500 VA
[Uc] Control Circuit Voltage24 V AC 50/60 Hz
Insulation Resistance1000 MOhm 500 V DC
Torque Value0.8 N.m
Test Levelslevel A group mounting
Pollution Degree2
Dielectric Strength1000 V AC between contacts micro disconnection || 5000 V AC between coil and contact reinforced insulation
Net Weight0.02 kg
Maximum Switching Voltage250 V AC || 30 V DC
[Ie] Rated Operational Current10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
Electrical Durability100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
Resistance260 Ohm +/- 10 %
Mounting Positionany position
Load Current10 A 250 V AC
Minimum Switching Capacity500 mW 100 mA, 5 V DC
